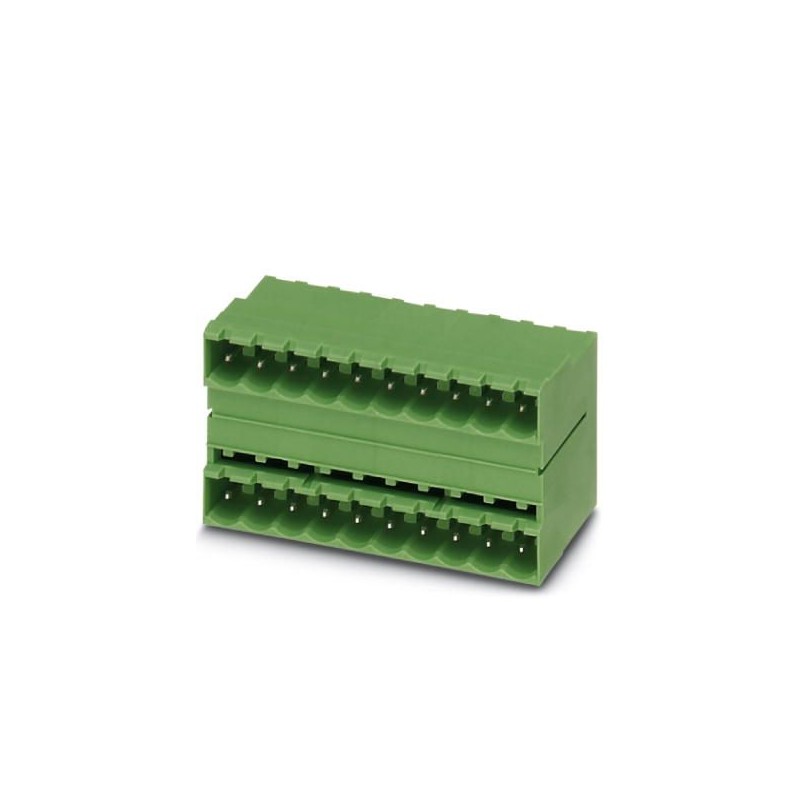

MDSTB 2,5/18-G1-5,08 1762525 PHOENIX CONTACT Feed-through header
MDSTB 2,5/18-G1-5,08
1762525
PHOENIX_CONTACT
50
Feed-through header
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1762525 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 175 (CC-2005) |
| GTIN | 4017918031121 |
| Weight per Piece (excluding packing) | 29.400 g |
| Custom tariff number | 85366930 |
| Country of origin | GR (Greece) |
Dimensions
| Length [ l ] | 22 mm |
|---|---|
| Width | 93 mm |
| Pitch | 5.08 mm |
| Dimension a | 86.36 mm |
| Width [ w ] | 93 mm |
| Height [ h ] | 32 mm |
| Height | 28.5 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 22 mm |
General
| Range of articles | MDSTB 2,5/..-G1 |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Maximum load current | 10 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 18 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CSA | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
