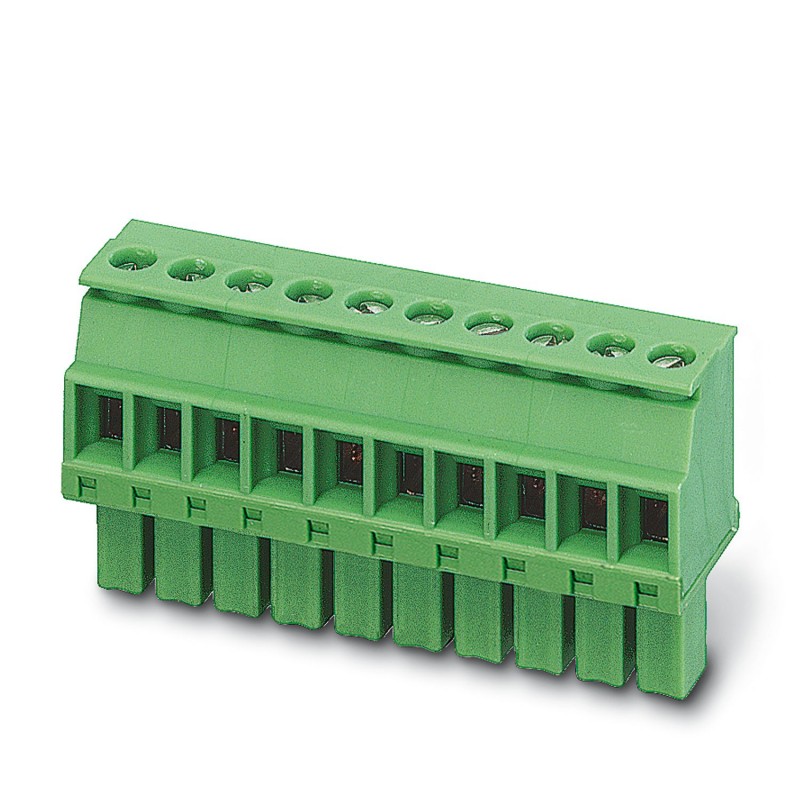

MCVW 1,5/ 2-ST-3,81-A 35 BD42 1090350 PHOENIX CONTACT Connector for printed circuit board, nominal current: ..
MCVW 1,5/ 2-ST-3,81-A 35 BD42
1090350
PHOENIX_CONTACT
1000
Product on demand only, returns will not be accepted.
Connector for printed circuit board, nominal current: 8 A, number of poles: 2, pitch: 3,81 mm, type of connection: Connection by screw with capsule-traction, color: grey, surface contacts: Tin
Connector for printed circuit board, nominal section: 1.5 mm², color: luminous gray, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 2, family of articles: MCVW 1.5/.. -ST, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: -90 °, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed
PCB connector, nominal cross-section: 1.5 mm2, colour: light grey, rated current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: socket, number of rows: 1, number of poles: 2, article family: MCVW 1.5/.. -ST, Pitch: 3.81 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: L Longitudinal slot, Connection direction conductor/board: -90 °, Plug-in system: COMBICON MC 1.5, Locking: without, Mounting type: without, Packaging type: packed in a carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | PCB Connectors |
| Product family | MCVW 1.5/.. -ST |
| Product Line | COMBICON Connectors S |
| Number of poles | 2 |
| Grid dimension | 3.81 mm |
| Number of rows | 1 |
| Data maintenance status | |
| Article revision | 00 |
| Nominal current IN | 8 A |
| Rated voltage UN | 160 V |
| Contact resistance | 3.7 mΩ |
| Rated voltage (III/3) | 160 V |
| Rated Surge Voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Rated Surge Voltage (III/2) | 2.5 kV |
| Rated voltage (II/2) | 320 V |
| Rated Surge Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Design | Standard |
| Connector system | COMBICON MC 1.5 |
| Nominal cross-section | 1.5 mm² |
| Contact type | Socket |
| Locking | |
| Lock type | without |
| Mounting Flange | without |
| Conductor connection | |
| Connection type | Screw connection with pull sleeve |
| Connection direction conductor/circuit board | -90 ° |
| Conductor cross-section rigid | 0.14 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.14 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 28 ... 16 |
| Flexible conductor cross-section with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with ferrule with plastic sleeve | 0.25 mm² ... 0.5 mm² |
| 2 conductors of the same cross-section rigid | 0.08 mm² ... 0.5 mm² |
| 2 conductors of the same cross-section flexible | 0.08 mm² ... 0.75 mm² |
| 2 conductors of the same cross-section flexible with ferrule without plastic sleeve | 0.25 mm² ... 0.34 mm² |
| 2 conductors of the same cross-section flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 0.5 mm² |
| Gauge mandrel a x b / diameter | 2.4 mm x 1.5 mm / 1.6 mm |
| Stripping length | 7 mm |
| Drive Form Screw Head | Longitudinal slot (L) |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Information on ferrules without insulating collar | |
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
| Information on ferrules with insulating collar | |
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
| Material information - Contact | |
| Note | WEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Material Contact | Cu alloy |
| Surface finish | hot-dip tin-plated |
| Metal surface clamping point (top layer) | Tin (4 - 8 μm Sn) |
| Metal Surface Contact Area (Top Layer) | Tin (4 - 8 μm Sn) |
| Material specifications - Housing | |
| Color (Housing) | Light Grey (7035) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature of the ball pressure test according to EN 60695-10-2 | 125 °C |
| Dimensional drawing |  |
| Grid dimension | 3.81 mm |
| Width [w] | 8.41 mm |
| Height [h] | 19.15 mm |
| Length [l] | 10.4 mm |
| Inspection for conductor damage and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Exam passed |
| Tensile testing | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/Conductor type/Tensile force Setpoint/Actual value | 0.14 mm² / rigid / > 10 N |
| 0.14 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Mating and pulling forces | |
| Test Specification | DIN EN 60512-13-2:2006-11 |
| Result | Exam passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 8 N |
| Pulling force per pole approx. | 6 N |
| Torque Testing | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Durability of inscriptions | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Exam passed |
| Polarization and Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Exam passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Exam passed |
| Dimensional inspection | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Exam passed |
| Vibration testing | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y and Z axis |
| Durability test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Standing Shock Stress at Sea Level | 4.8 kV |
| Contact resistance R1 | 3.7 mΩ |
| Contact resistance R2 | 3.9 mΩ |
| Mating cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climatic testing | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion stress | 0.2 dm3SO2to 300 DM3/40 °C/1 cycle |
| Heat stress | 100 °C/168 h |
| Standing AC voltage | 2.21 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Testing Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Tested number of poles | 16 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Clearance and creepage distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated Surge Voltage (III/3) | 2.5 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 1.5 mm |
| Minimum value of the creepage distance (III/3) | 2 mm |
| Rated insulation voltage (III/2) | 160 V |
| Rated Surge Voltage (III/2) | 2.5 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 1.5 mm |
| Minimum value of the creepage distance (III/2) | 1.5 mm |
| Rated insulation voltage (II/2) | 320 V |
| Rated Surge Voltage (II/2) | 2.5 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 1.5 mm |
| Minimum value of the creepage distance (II/2) | 1.6 mm |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
