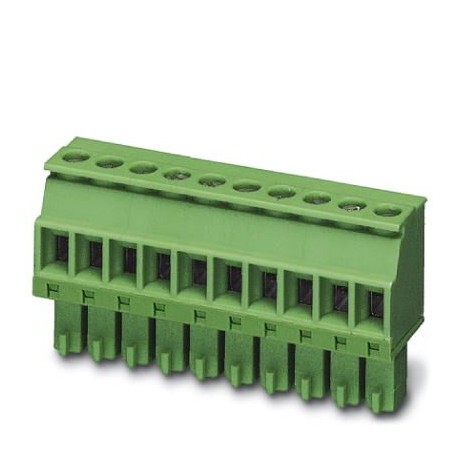

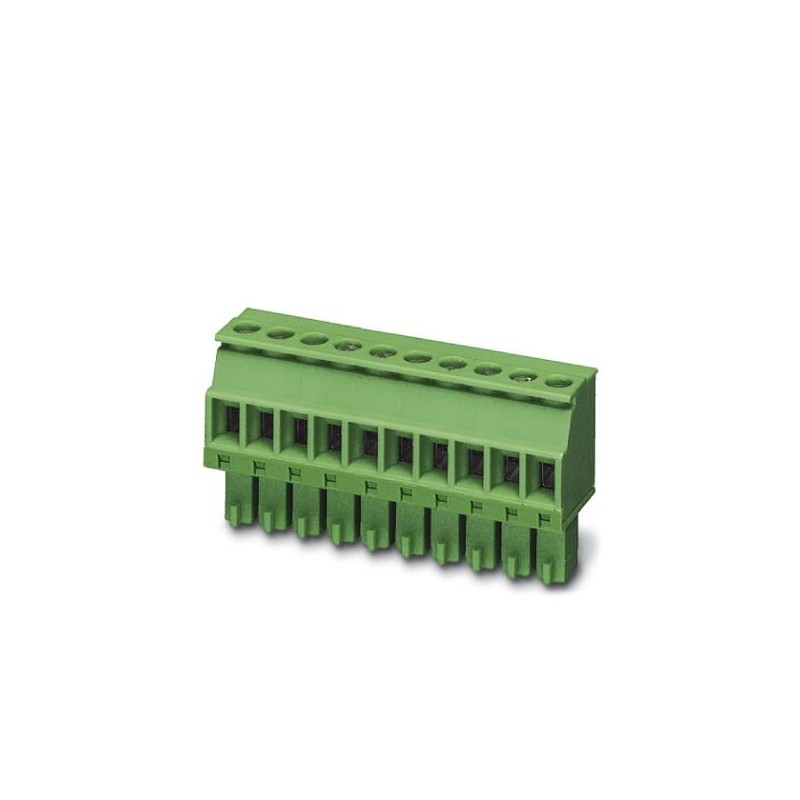

MCVR 1,5/ 2-ST-3,81 CN1BD:1-2 1873329 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (II..
MCVR 1,5/ 2-ST-3,81 CN1BD:1-2
1873329
PHOENIX_CONTACT
50
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 2, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million eight hundred seventy three thousand three hundred twenty nine |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAEBA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred sixty eight thousand six hundred ninety nine |
| Unit weight (excluding packaging) | 1,650 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
Back to top
Properties of the article
| Abbreviation | Plug-in connector for plate circ. printed |
|---|---|
| Plug-in system | MINI COMBICON |
| Type of contact | Female connection |
| Family of articles | MCVR 1,5/..-ST |
| Step | 3,81 mm |
| Number of poles | Two |
| Type of connection | Connection by screw with capsule-traction |
| Shape of the drive head of screw | Lengthwise slot (L) |
| Screw thread | M2 |
| Number of floors | One |
| Number of connections | Two |
| Number of potential | Two |
Characteristic data electrical
| Rated current | 8 To |
|---|---|
| Rated voltage | 160 V |
| Tension sizing | 160 V |
| Tension and sizing (III/2) | 160 V |
| Tension and sizing (II/2) | 320 V |
| Transient voltage design (III/3) | 2.5 kV |
| Transient voltage design (III/2) | 2.5 kV |
| Transient voltage design (II/2) | 2.5 kV |
Ability conex.
| Type of connection | Connection by screw with capsule-traction |
|---|---|
| plug-in | yes |
| Section of conductor rigid | 0,14 mm2 ... 1,5 mm2 |
| Section of flexible conductor | 0,14 mm2 ... 1,5 mm2 |
| Section of conductor AWG / kcmil | 28 ... 16 |
| Section of flexible conductor with toe cap, without plastic sleeve | 0.25 mm2 ... 1.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve | 0.25 mm2 ... 0.5 mm2 |
| 2 conductors with same cross section, rigid | 0,08 mm2 ... 0.5 mm2 |
| 2 conductors with same cross section, flexible | 0,08 mm2 ... 0.75 mm2 |
| 2 conductors of equal section, flexible, with toe cap, without plastic sleeve | 0.25 mm2 ... 0,34 mm2 |
| 2 conductors with same cross section, flexible with toe cap TWIN with plastic sleeve | 0.5 mm2 ... 0.5 mm2 |
| Gauge male a x b / Diameter | 2.4 mm x 1.5 mm/1.6 mm |
| Length of peeling | 7 mm |
| Tightening torque | 0.22 Nm ... 0,25 Nm |
Material data - contact
| Observation | According to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Material contact | Cu alloy |
| Characteristics of the surface | tinning of malleable cast iron |
| Metal surface of the point of embornaje (top layer) | Tin (4 - 8 ám Sn) |
| Metal surface area of contact (top layer) | Tin (4 - 8 ám Sn) |
Material data - housing
| Color housing | green (6021) |
|---|---|
| Isolation | PA |
| Group insulating material | I |
| CTI according to IEC 60112 | Six hundred |
| Class of flammability according to UL 94 | V0 |
| Number of flammability of filaments GWFI according to en 60695-2-12 | Eight hundred fifty |
| Ignition temperature of filaments GWIT according to en 60695-2-13 | Seven hundred seventy five |
| Temperature test of the hardness for the balls according to en 60695-10-2 | 125 °C |
Product dimensions
| Outline dimensions |  |
|---|---|
| Length [ l ] | 10,4 mm |
| Width [ w ] | 8,41 mm |
| Height [ h ] | 19.1 mm |
| Step | 3,81 mm |
| Height of building (height without the shank of soldering) | 19.1 mm |
| Average | 3,81 mm |
Indications of packing
| Type of packaging | packaged in box |
|---|---|
| Packing unit | Fifty |
| Designation packing Units | Units |
Environmental conditions
| Ambient temperature (storage / transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Room temperature (service) | -40 °C ... 100 °C (in function of the curve derating) |
Connection and method of connection
| Checking of damage in the conductors and loosening | DIN EN 60999-1 (VDE 0609-1):2000-12 |
|---|---|
| Test approved |
Tensile test
| Tensile test | DIN EN 60999-1 (VDE 0609-1):2000-12 |
|---|---|
| Test approved | |
| Section of the driver / type of driver / traction force | 0.14 mm2 / stiff / > 10 N |
| 0.14 mm2 / flexible / > 10 N | |
| 1.5 mm2 / stiff / > 40 N | |
| 1,5 mm2 / flexible / > 40 N |
Mechanical testing according to the standards
| Visual Control | Test passed DIN en 60512-1-1:2003-01 |
|---|---|
| Check dimensions | Test passed DIN en 60512-1-2:2003-01 |
| Resistance of prints | Test passed DIN en 60068-2-70:1996-07 |
| Result | Test approved |
| Specification of the test | DIN EN 60512-13-2:2006-11 |
| Number of cycles | Twenty five |
| Force to the plug by polo approx. | 8 N |
| Force when unplugging per pole approx. | 6 N |
| Polarization and coding | Test passed DIN en 60512-13-5:2006-11 |
| Result | Test approved |
| Specification of the test | DIN EN 60512-15-1:2009-03 |
| Strength trial-by-polo | 28 N |
Lines of flight and air spaces
| Air spaces and lines of flight | DIN EN 60664-1 (VDE 0110-1):2008-01 |
|---|---|
| Specification of the test | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Minimum value of air gap - field inhomogéneo (III/3) | 1.5 mm |
| Minimum value of air gap - field inhomogéneo (III/2) | 1.5 mm |
| Minimum value of air gap - field inhomogéneo (II/2) | 1.5 mm |
| Minimum value of the line of flight (III/3) | 2 mm |
| Minimum value of the line of flight (III/2) | 1.5 mm |
| Minimum value of the line of flight (II/2) | 1.6 mm |
| Warning with respect to the connection section | With the conductor of 1,5 mm2 (rigid) connected to it. |
Mechanical testing (A)
| Force to the plug by polo approx. | 8 N |
|---|---|
| Force when unplugging per pole approx. | 6 N |
| Requirement of impossibility of confusion when connecting >20 N | Test approved |
| Portacontactos used requirement >20 N | Test approved |
Checks resistance (B)
| Specification of the test | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
|---|---|
| Cycles of plug | Twenty five |
| Resistance step RTwo, first floor | To 3.5 mΩ |
| Contact resistance RTwo2nd floor | 4,4 mΩ |
| Voltage shock endurable level sea | 2,95 kV |
| Ac voltage bearable | 1,39 kV |
| Insulation resistance Pole-contiguous | > 0,4 TΩ |
Essays on climate (D)
| Specification of the test | DIN EN ISO 6988:1997-03 |
|---|---|
| Effort cold | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Fatigue corrosion | 0,2 dmThreeSOTwoin 300 dmThree/40 °C/1 cycle |
| Voltage shock endurable level sea | 2,95 kV |
| Ac voltage bearable | 1,39 kV |
Checks and environmental resistance (E)
| Specification of the test | DIN EN 61984 (VDE 0627):2009-11 |
|---|---|
| Result-Degree of protection IP Code | Protection against contact of fingers with finger proof IP20 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
