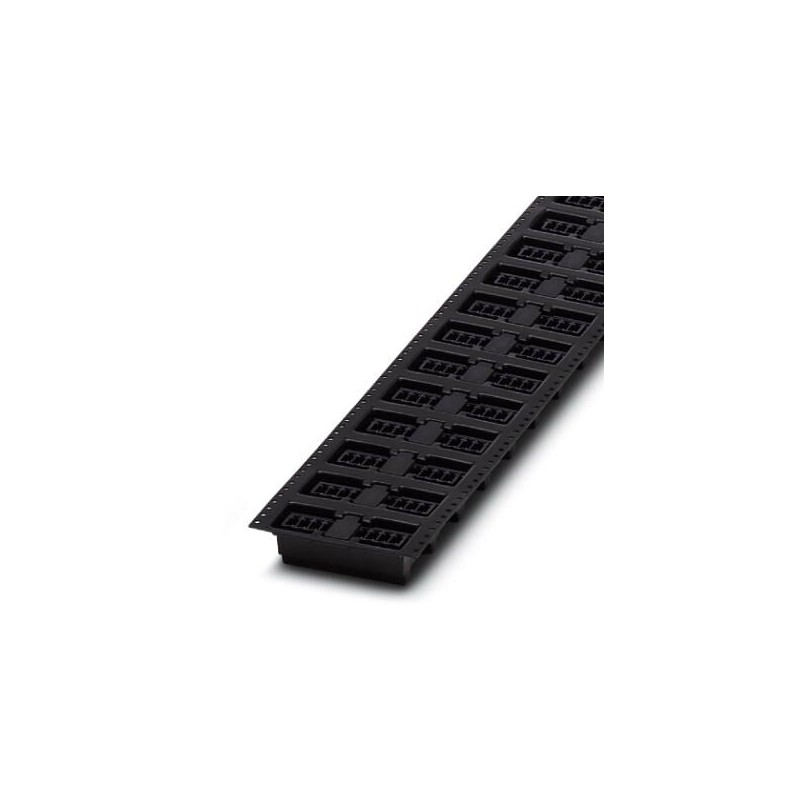

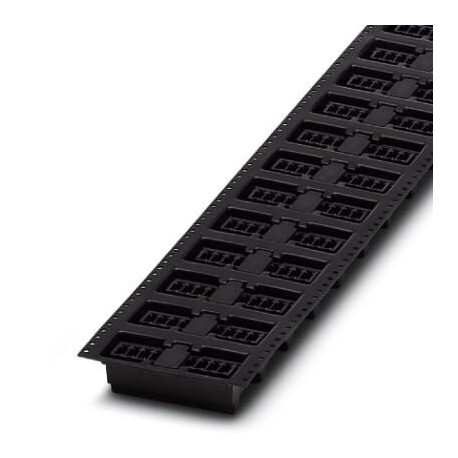

MCV 1,5/ 8-G-3,5 P14 THRR44C 1805229 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MCV 1,5/ 8-G-3,5 P14 THRR44C 1805229 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2..

MCV 1,5/ 8-G-3,5 P14 THRR44C

1805229

PHOENIX_CONTACT

140

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”

Key Commercial Data

Orderkey1805229
Packing unit1
GTIN4046356671620
Custom tariff number85366930

Dimensions

Length [ l ]6.9 mm
Width29.4 mm
Pitch3.5 mm
Dimension a24.5 mm
Width [ w ]29.4 mm
Height [ h ]8.3 mm
Height9.2 mm
Length of the solder pin1.4 mm
Pin dimensions0.8 x 0.8 mm
Length6.9 mm

General

Range of articlesMCV 1,5/..-G-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409

Datasheet - PDF

▲
