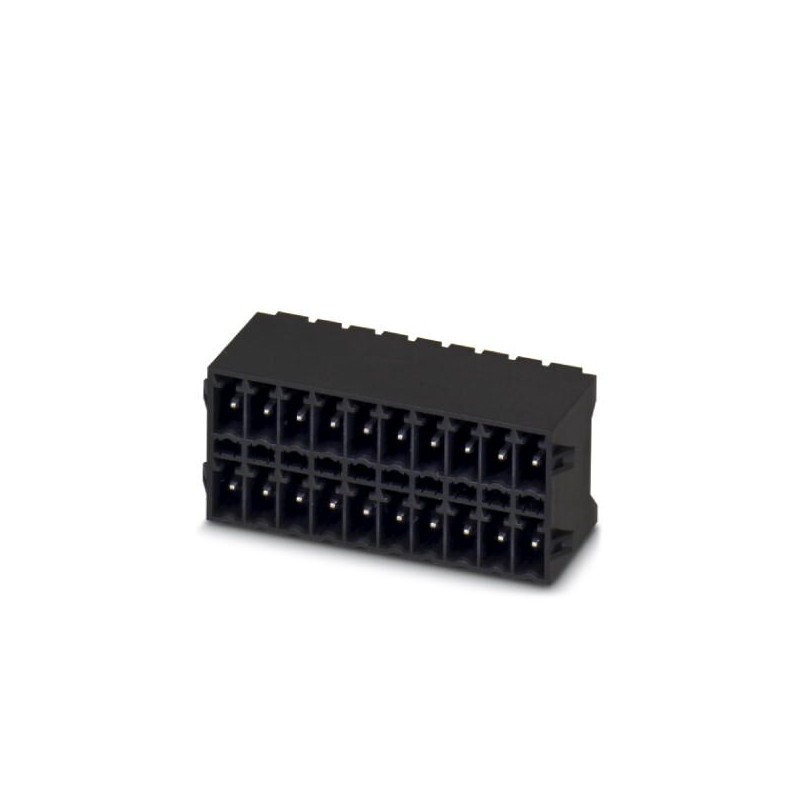

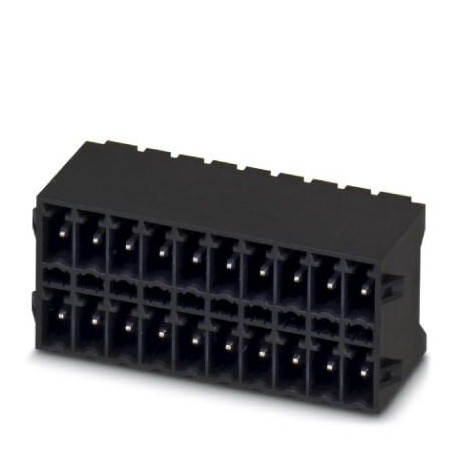

MCDN 1,5/ 8-G1-3,5RNP26THRR56 1790755 PHOENIX CONTACT Housing base printed circuit board, nominal current: 8..
MCDN 1,5/ 8-G1-3,5RNP26THRR56
1790755
PHOENIX_CONTACT
110
Product on demand only, returns will not be accepted.
Housing base printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 8, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 16, number of rows: 2, number of poles: 8, number of connections: 16, family of articles: MCDN 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Snap-on protrusion, packing type: 56 mm wide strap
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Housing base printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 8, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR
Data commercial
| Key order | One million seven hundred ninety thousand seven hundred fifty five |
|---|---|
| Packing unit | 110 pcs |
| Key selling | AAAEFB - |
| Minimum order quantity | 110 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million six hundred twenty one thousand seventy six |
| Unit weight (excluding packaging) | 9,754 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | BG (Bulgaria) |
Dimensions
| Length [ l ] | 13,3 mm |
|---|---|
| Width | 31.7 mm |
| Step | 3.5 mm |
| Average | 24,5 mm |
| Width [ w ] | 31.7 mm |
| Height [ h ] | 17.8 mm |
| Height of construction | 15.2 mm |
| Length of the pin welding | 2.6 mm |
| Separation between rods | 3,50 mm |
| Length | 13,3 mm |
Overview
| Family of articles | MCDN 1,5/..-G1-RN-THR |
|---|---|
| Tension and sizing (III/3) | 160 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 8 To |
| Color | black |
| Number of poles | Eight |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 4.0 | EC002637 |
|---|---|
| ETIM 5.0 | EC002637 |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred ten |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 16 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 2.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
