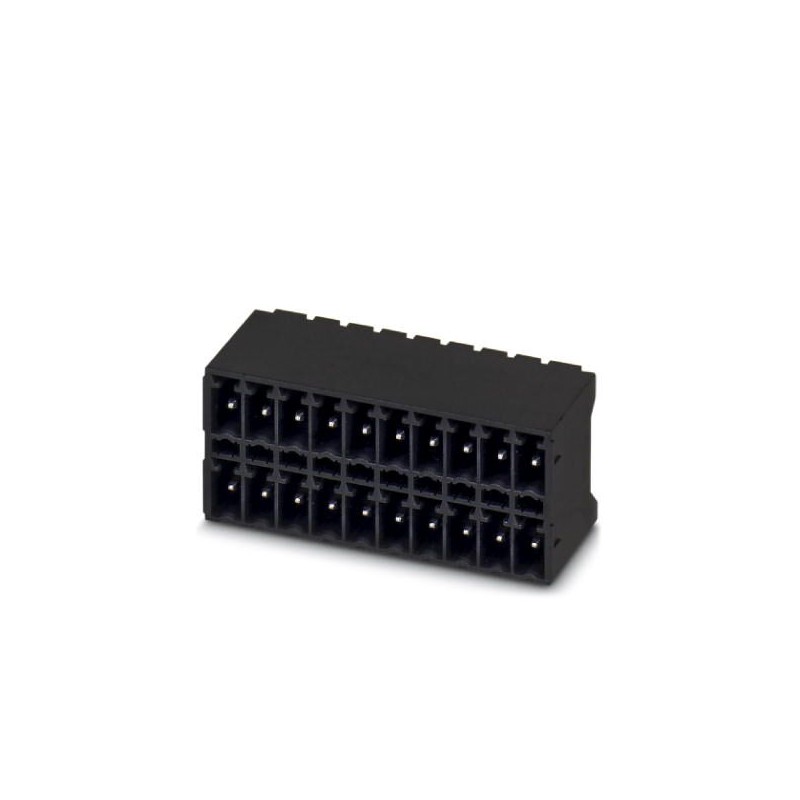

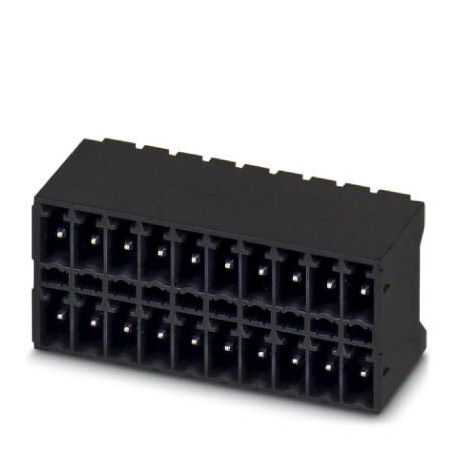

MCDN 1,5/ 8-G1-3,5 GY P26THR 1864891 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2..
MCDN 1,5/ 8-G1-3,5 GY P26THR
1864891
PHOENIX_CONTACT
40
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: gray, contact surface: Tin, mounting: THR soldering, The pin length is 1.4 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: Downloads".
Printed circuit board base case, nominal section: 1.5 mm², color: gray, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, Number of potentials: 16, Number of rows: 2, Number of poles per row: 8, number of connections: 16, family of articles: MCDN 1.5/.. -G1-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, Stecksystem: MINI COMBICON, Lock: without, packaging type: boxed packaging, Pin length is 1.4 mm. For user information and design recommendations on Through Hole Reflow technology, please refer to: "Downloads".
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: gray, contact surface: Tin, mounting: THR soldering, The pin length is 1.4 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: Downloads".
Key Commercial Data
| Orderkey | 1864891 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626279633 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 13.3 mm |
|---|---|
| Pitch | 3.5 mm |
| Dimension a | 24.5 mm |
| Height [ h ] | 15.2 mm |
| Height | 16 mm |
| Length of the solder pin | 1.4 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Pin spacing | 3.50 mm |
| Length | 13.3 mm |
General
| Range of articles | MCDN 1,5/..-G1-THR |
|---|---|
| Insulating material group | IIIa |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Flammability rating according to UL 94 | V0 |
| Color | gray |
| Number of positions | 8 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
