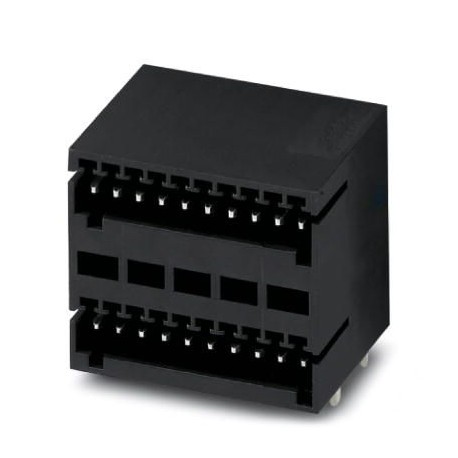

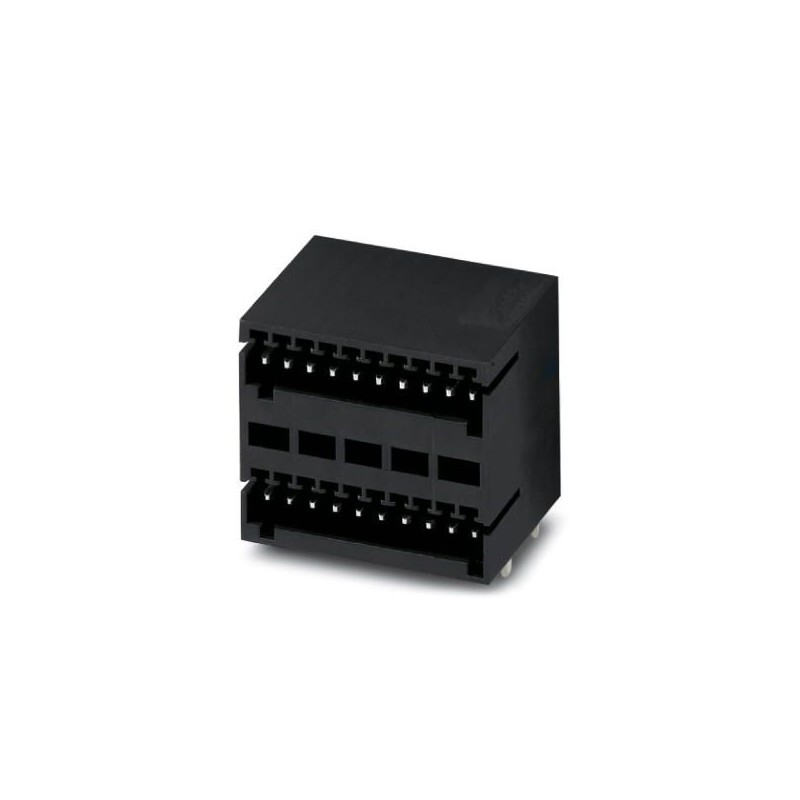

MCD 0,5/12-G1-2,5 HTBKPIN26 TR 1968866 PHOENIX CONTACT Printed-circuit board connector
MCD 0,5/12-G1-2,5 HTBKPIN26 TR
1968866
PHOENIX_CONTACT
160
Printed-circuit board connector
Printed circuit board base case, nominal section: 0.5 mm², color: black, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 24, number of rows: 2, number of poles: 12, number of connections: 24, family of articles: MCD 0.5/.. -G1-HT, pitch: 2.5 mm, mounting: THR solder, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1968866 |
|---|---|
| Packing unit | 160 pc |
| Minimum order quantity | 160 pc |
| GTIN | 4017918929725 |
| Weight per Piece (excluding packing) | 11.870 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Pitch | 2.5 mm |
|---|---|
| Dimension a | 27.5 mm |
| Height | 22 mm |
| Length of the solder pin | 2.6 mm |
| Pin dimensions | 0.8 x 0.8 mm |
General
| Range of articles | MCD 0,5/..-G1-HT |
|---|---|
| Rated voltage (III/3) | 32 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 4 A |
| Color | black |
| Number of positions | 12 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
