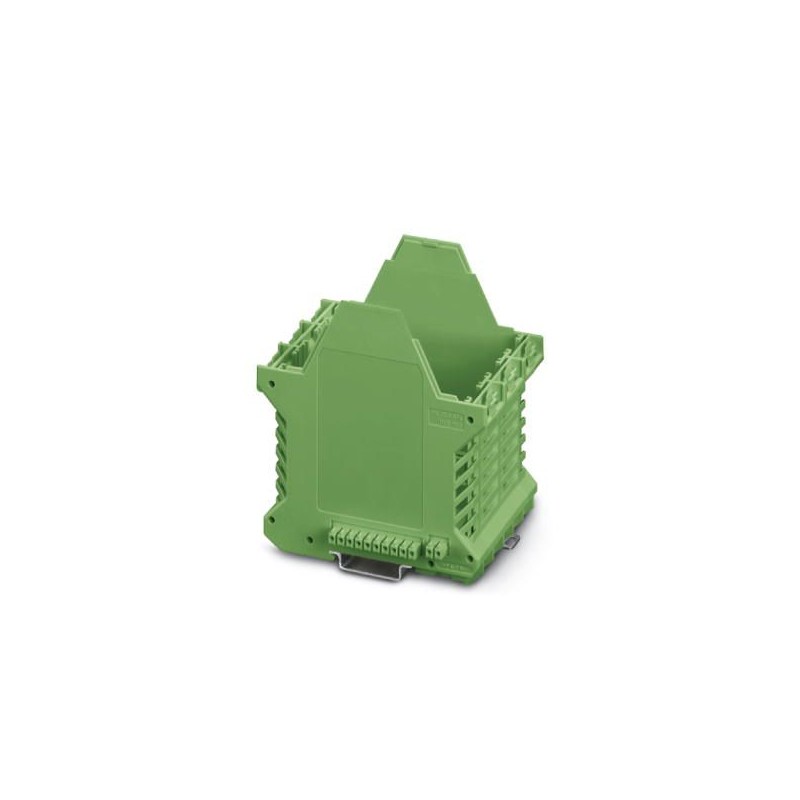

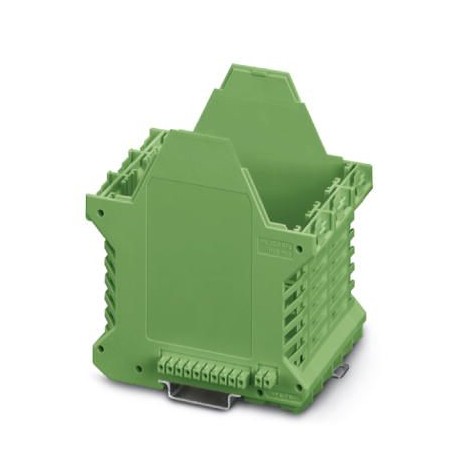

ME 67,5 UT/FE BUS/10+2 GN 2697482 PHOENIX CONTACT Electronic housing
ME 67,5 UT/FE BUS/10+2 GN
2697482
PHOENIX_CONTACT
10
Electronic housing
Rail box, Bottom of housing with metal pin, high design, with ventilation slits, width: 67.8 mm, height: 99 mm, depth: 107.3 mm, cross bridge: integrated bus connector, number of poles cross connector: 10+2, color: green (6021)
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2697482 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918991708 |
| Weight per Piece (excluding packing) | 94.130 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Technical data
| Power dissipation without gap | 9.1 W |
|---|---|
| Power dissipation with 20 mm gap | 17.5 W |
| Number of positions | 48 |
| 12 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
