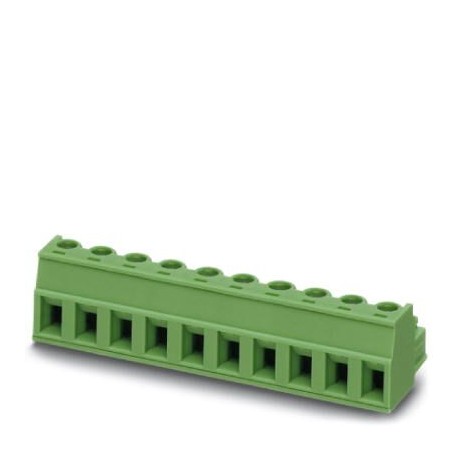

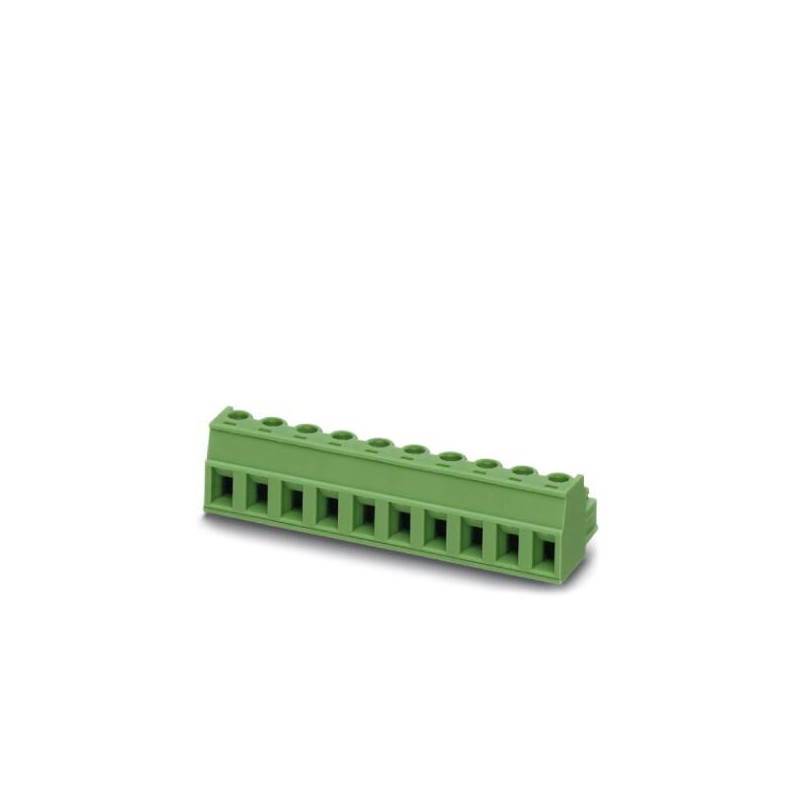

MC 1,5/ 3-ST1-5,08 BD:CH-A+ 1032914 PHOENIX CONTACT Printed-circuit board connector MC 1,5/ 3-ST1-5,08 BD:CH..
MC 1,5/ 3-ST1-5,08 BD:CH-A+
1032914
PHOENIX_CONTACT
50
Printed-circuit board connector - MC 1,5/ 3-ST1-5,08 BD:CH-A+ - 1032914
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲PCB connector, nominal current: 8 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin
Key Commercial Data
| Orderkey | 1032914 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626537917 |
| Custom tariff number | 85366990 |
Dimensions
| Length [ l ] | 15.5 mm |
|---|---|
| Width [ w ] | 15.2 mm |
| Height [ h ] | 11.1 mm |
| Pitch | 5.08 mm |
| Dimension a | 10.16 mm |
General
| Range of articles | MC 1,5/..-ST1 |
|---|---|
| Number of positions | 3 |
| Connection method | Screw connection with tension sleeve |
| Nominal cross section | 1.5 mm² |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
ETIM
| ETIM 5.0 | EC002638 |
|---|---|
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
