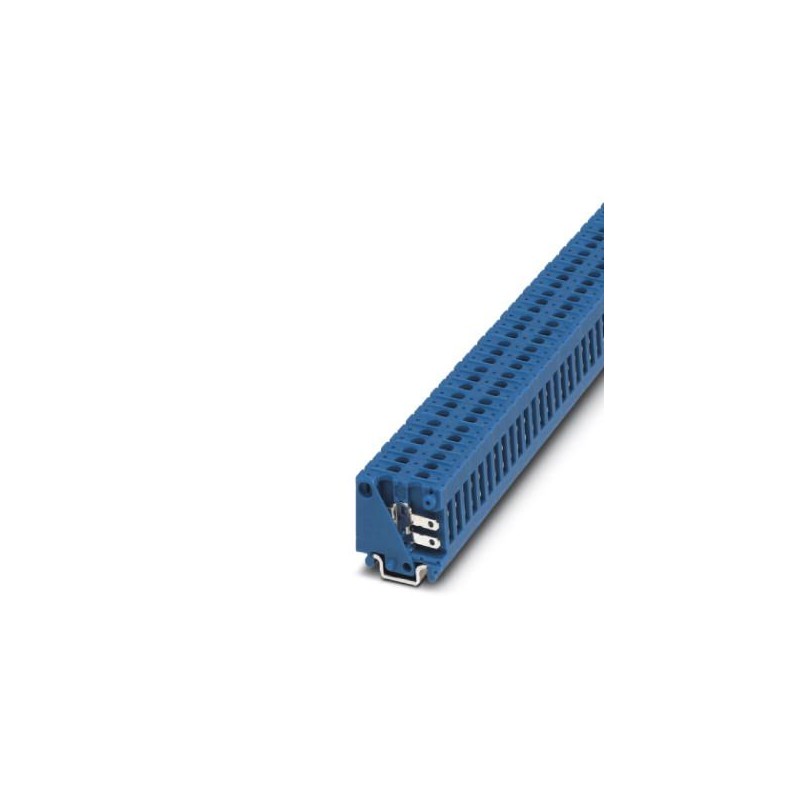

MBK-FS/FS BU 1406098 PHOENIX CONTACT Borne of step, Type of connection: plug Connection plane, Section: 0.5 ..
MBK-FS/FS BU
1406098
PHOENIX_CONTACT
Borne of step, Type of connection: plug Connection plane, Section: 0.5 mm2
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1406098 |
|---|---|
| Packing unit | 200 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 313 (CL-2005) |
| GTIN | 4017918021030 |
| Weight per Piece (excluding packing) | 2.180 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 8 |
| Color | blue |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
| Rated surge voltage | 6 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection method | Slip-on connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Nominal current IN | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Nominal voltage UN | 400 V (voltage data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Open side panel | No |
Connection data
| Connection method | Slip-on connection |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 1 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 18 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Min. AWG conductor cross section, flexible | 20 |
| Max. AWG conductor cross section, flexible | 18 |
| Slip-on connection | 6.3/2.8 x 0.8 mm |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141123eCl@ss 4.127141123eCl@ss 5.027141120eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120
