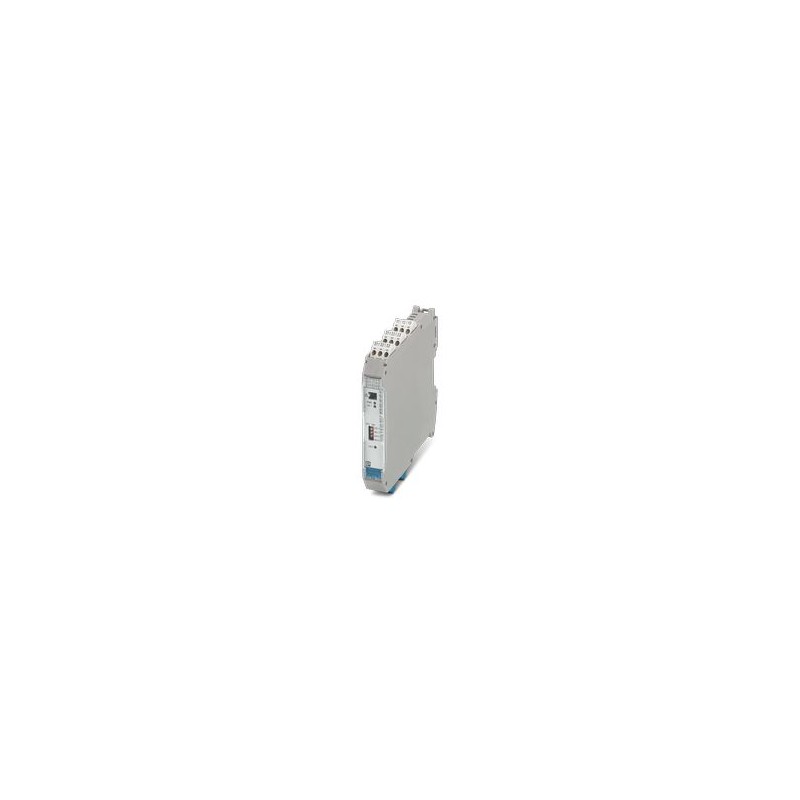

MACX MCR-EX-AP-2F-2I 1290530 PHOENIX CONTACT Ex i-Frequency Converters the frequencies measured at the input.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MACX MCR-EX-AP-2F-2I 1290530 PHOENIX CONTACT Ex i-Frequency Converters the frequencies measured at the input..

MACX MCR-EX-AP-2F-2I

1290530

PHOENIX_CONTACT

Ex i-Frequency Converters; the frequencies measured at the inputs Ex i (0.001 Hz ... 20 kHz) are emitted as 0 mA/4 mA non-Ex i signals... 20 mA. Standard Configuration, 5-Way Spacing, Screw Connection

More details


Home > PHOENIX CONTACT

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $831.13
Unit price: $831.13

Quantity Price
1+$831.13
2+$817.57
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Related products

Best sellers

More info



Technical data

Notes
GeneralAccuracy, typical data in % of the basic measurement interval with UN, 23 °C
GeneralThe installation conditions influence the ambient temperature.
Please note the "Control Cabinet Installation Instructions".
GeneralIf the temperature is below -20°C, the appropriate cables and cable glands should be used.

Item Properties
Product TypeFrequency value transformer
Product FamilyMACX Analog
Number of channels2
ConfigurationSoftware

System Properties
Functionality
ConfigurationSoftware

Electrical Properties
Number of channels2
Galvanic Separation5-way spacing
Typical Temperature Coefficient≤ 0.05%
Polarity reversal protectionYes
Galvanic Separation Input/Output IEC/EN 60079-11
Standards/SpecificationsIEC/EN 60079-11
Sizing Insulation Voltage375 VPP
Galvanic Separation Input/Power IEC/EN 60079-11
Standards/SpecificationsIEC/EN 60079-11
Sizing Insulation Voltage375 VPP
Galvanic Separation IEC/EN 60079-11 Error Signaling Input/Output
Standards/SpecificationsIEC/EN 60079-11
Sizing Insulation Voltage375 VPP
Galvanic Separation Input / Configuration Interface IEC/EN 60079-11
Standards/SpecificationsIEC/EN 60079-11
Sizing Insulation Voltage375 VPP
Galvanic Separation Output 1 / Output 2
Test voltage350 V (50 Hz, 60 sec)
Galvanic Separation Output/Feed
Test voltage350 V (50 Hz, 60 sec)
Galvanic Separation Output/Configuration Interface
Test voltage350 V (50 Hz, 60 sec)
Galvanic Separation Fault Signaling Output/Power/Output
Test voltage350 V (50 Hz, 60 sec)
Feeding
Nominal Supply Voltage24 V DC
Supply voltage18 V ... 31.2 V
Dissipated Power≤ 1.5 W
Power Consumption1.8 W

Input data
Measuring: Frequency
Ticket DescriptionIntrinsic safety
Usable Input SourcesAccording to IEC/EN 60947-5-6 NAMUR
Impulse Time25 μs
Frequency measurement range0.001 Hz ... 20000 Hz
Line Fault Detection< 0.05 mA ... 0.35 mA (Cable Break)
< 100 Ω ... 360 Ω (Short Circuit)

Output Data
Notify: Error Signaling Output
Maximum Switching Voltage30 V
Maximum switching current100 mA
Signal: Current
Current Output Signal0 mA ... 20 mA (configurable)
4 mA ... 20 mA (configurable)
0 mA ... 20.5 mA (Operating Range)
Output current in case of short circuit3.8 mA (Original Factory Settings, Adjustable)
Output current in case of cable breakage20.5 mA (Original Factory Settings, Adjustable)
Load0 Ω ... 600 Ω
Line Fault Detection< 0.05 mA ... 0.35 mA (Cable Break)
< 100 Ω ... 360 Ω (Short Circuit)

Connection data
AWG Conductor Section(Converted according to IEC)
Connection typeScrew connection
Length to be de-insulated7 mm
Screw threadM3
Rigid conductor section0.2 mm² ... 2.5 mm²
Flexible conductor section0.2 mm² ... 2.5 mm²
AWG Conductor Section24 ... 14

Ex Data
Ex Installation (EPL)Gc
Intrinsically safe circuits (EPL)Ga
Gives
Ma
Technical Safety Data
Internal inductance max. Lidespicable
Max. Internal Capacity Cidespicable
Max. output voltage Uor10.5 V
Max. Output Current Ior23.4 mA
Max. output power Por61.4 mW
Maximum safety voltage Um253 V AC
IIA (Single Electrical Circuit): External inductance max. Lor/ Max. external capacity Cor450 mH / 75 μF
IIB/IIIC (Single Electrical Circuit): External Inductance Max. Lor/ Max. external capacity Cor230 mH / 16.8 μF
IIC (Single Electrical Circuit): External inductance max. Lor/ Max. external capacity Cor63 mH / 2.41 μF
I (single electrical circuit): External inductance max. Lor/ Max. external capacity Cor600 mH / 95 μF
IIA (Combined Electrical Circuit): External inductance max. Lor/ Max. external capacity Cor100 mH / 2.9 μF, 10 mH / 4.5 μF, 1 mH / 7.3 μF, 0.1 mH / 14 μF
IIB/IIIC (Combined Electrical Circuit): External inductance max. Lor/ Max. external capacity Cor100 mH / 1.9 μF, 20 mH / 2.7 μF, 2 mH / 4.5 μF, 0.5 mH / 6.4 μF
IIC (Combined Electrical Circuit): External inductance max. Lor/ Max. external capacity Cor20 mH / 0.49 μF, 5 mH / 0.67 μF, 1 mH / 0.96 μF, 0.2 mH / 1.4 μF
I (combined electrical circuit): External inductance max. Lor/ Max. external capacity Cor100 mH / 4 μF, 10 mH / 5.7 μF, 2 mH / 7.8 μF, 0.1 mH / 17 μF

Signage
Status IndicationGreen LED (supply voltage)
Red LED (Line Error)

Dimensions
Dimension Schemekrbhdfxwui.jpg
Width17.5 mm
Height112.5 mm
Depth113.7 mm
Depth NS 35/7.5114.5 mm (fitted on DIN rail NS 35/7.5 according to EN 60715)

Material Data
Flammability class according to UL 94V0
Shell materialPolyamide (PA 6.6)

Environmental and life-life conditions
Environmental conditions
Protection IndexIP20 (Terminals)
IP30 (Housing)
Ambient Temperature (Service)-40 °C ... 70 °C (Individual Equipment: Discretionary Mounting Position)
-40 °C ... 50 °C (Installation in groups: vertical DIN rail without air circulation)
-40 °C ... 65 °C (Mounting in groups: vertical DIN rail with air circulation)
-40 °C ... 65 °C (Can be mounted in groups: horizontal DIN rail without air circulation)
-40 °C ... 70 °C (Bracket mounting: horizontal DIN rail with air circulation)
Ambient Temperature (Storage/Transport)-40 °C ... 80 °C
Altitude≤ 2000 m
Permissible air humidity (service)≤ 95% (non-condensing)

Approvals
ATEX
Marked II (1) G [Ex ia Ga] IIC
 II (1) D [Ex ia Da] IIIC
 II 3 (1) G Ex nA [ia Ga] IIC T4 Gc
 I (M1) [Ex ia Ma] I
IECEx
Marked[Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex nA nC [ia Ga] IIC T4 Gc
[Ex ia Ma] I

EMC data
Electromagnetic compatibilityTesting according to the following standards and requirements: EN 61326-1 for use in the industrial field, NAMUR NE 21

Standards & Specifications
Galvanic Separation5-way spacing

assembly
Type of mountingNS 35/15, NS 35/7.5
Position for mountingvertical, horizontal
