M23-1RS1N8A80DUS
1629148
PHOENIX_CONTACT
1

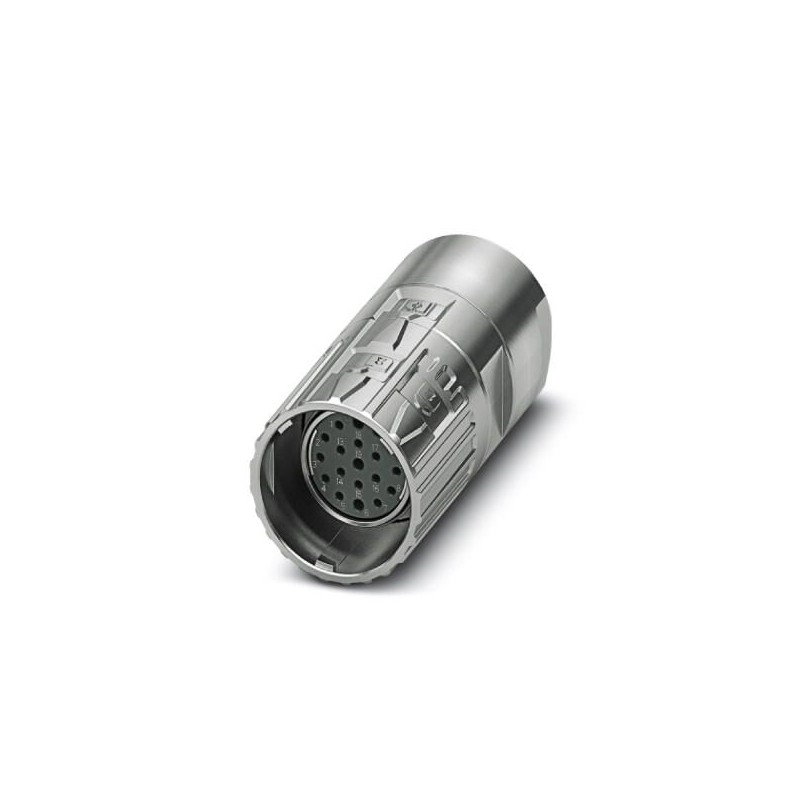

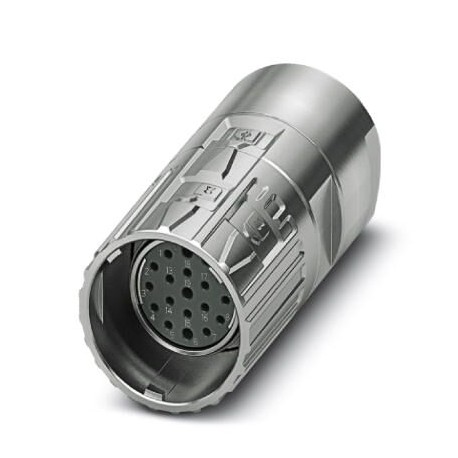

Cable connector, M23 PRO, straight, shielded: yes, ONECLICK fast locking system, M23, No. of pos.: 16+2+PE, type of contact: Socket, Crimp connection, cable diameter range: 3 mm ... 15 mm
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1629148 |
---|---|
Packing unit | 1 pc |
GTIN | 4055626617817 |
Weight per Piece (excluding packing) | 0.000 g |
Custom tariff number | 85366990 |
Country of origin | DE (Germany) |
Note | Order information: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately |
---|---|
Insulator material | PA 6.6 |
Contact connection method | Crimp connection |
Type of contacts | Socket |
Application | Signal |
Number of positions | 19 |
Direction of rotation | Standard |
Contact diameter of power contacts | 1.5 mm |
Litz wire cross section of power contacts min. | 0.08 mm² |
Litz wire cross section of power contacts max. | 1 mm² |
Rated current for power contacts | 10 A |
Additional text | for max. connection cross section |
Rated voltage of power contact | 150 V |
Rated surge voltage | 1.5 kV |
Overvoltage category | II |
Degree of pollution | 3 |
Contact diameter of signal contacts | 1 mm |
Litz wire cross section of signal contacts min. | 0.08 mm² |
Litz wire cross section of signal contacts max. | 1 mm² |
Rated current of each signal contact at 25°C | 8 A |
Additional text | for max. connection cross section |
Rated voltage of signal contact | 150 V |
Overvoltage category | II |
Degree of pollution | 3 |
Additional text | for max. connection cross section |
Housing material | GD-Zn |
---|---|
Type of locking | ONECLICK fast locking system |
Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
Thread type | M23 |
China RoHS | Environmentally Friendly Use Period = 50 |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
