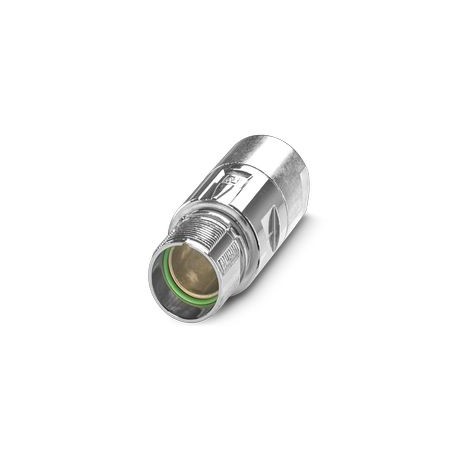

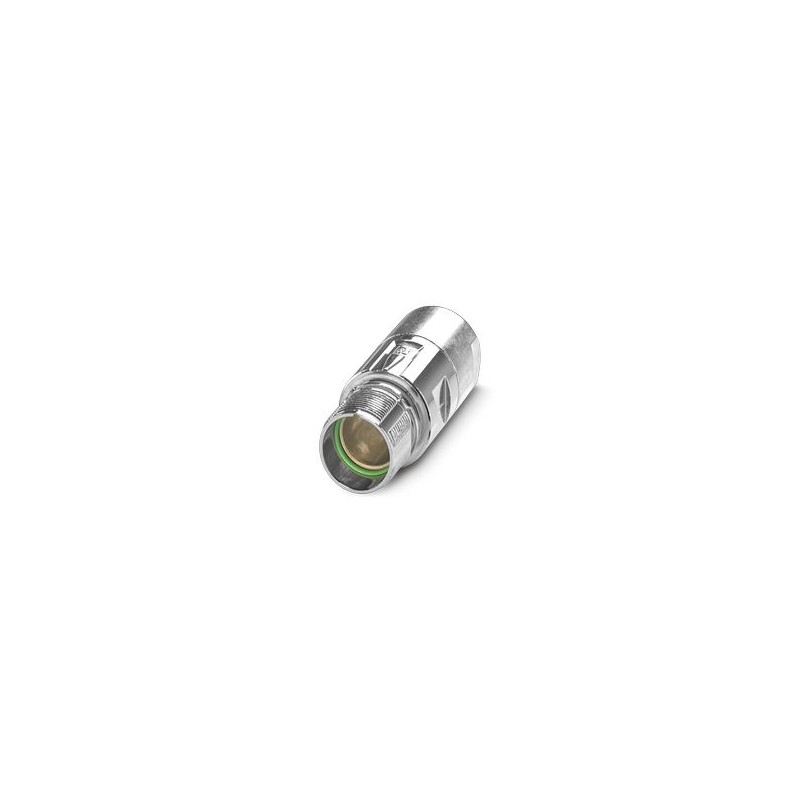

M23-000000090DUS-SIG 1554111 PHOENIX CONTACT Coupling connector box, series: M23 PRO Signal, straight, stand..
M23-000000090DUS-SIG
1554111
PHOENIX_CONTACT
Coupling connector box, series: M23 PRO Signal, straight, standard lock and ONECLICK M23, shielding: yes, note: can only be used in combination with the contact inserts indicated on the accessories. For safety information and assembly instructions, see reference article 1629113 (crimped version) or 1467143 (soldered version)
Overhead housing for plug-in mating connector
Coupler connector housing, series: M23 PRO Signal, straight, M23 standard and ONECLICK locking system, shielded: yes, note: can only be used in combination with the contact inserts listed under accessories; for safety notes and installation notes see reference item 1629113 (crimp version) or 1467143 (solder version)
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Order contact inserts separately |
| Product type | Sleeve housings |
| Application | Signal |
| Series | M23 PRO Signal |
| Shielded | yes |
| Pg screw connection | none |
| Cross section AWG | (converted acc. to IEC) |
| Seal material | FKM |
| Housing material | GD-Zn |
| Type | straight |
| Housing | |
| Housing material | GD-Zn |
| Type of locking | for standard and ONECLICK fast locking system |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP66 / IP68 (2 m / 24 h) |
| Thread type | M23 |
| Seal | |
| External cable diameter | 3 mm ... 15 mm (Universal gasket) |
| Seal material | FKM |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Ambient conditions | |
| Degree of protection | IP66 / IP68 (2 m / 24 h) |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Altitude | 3000 m |
