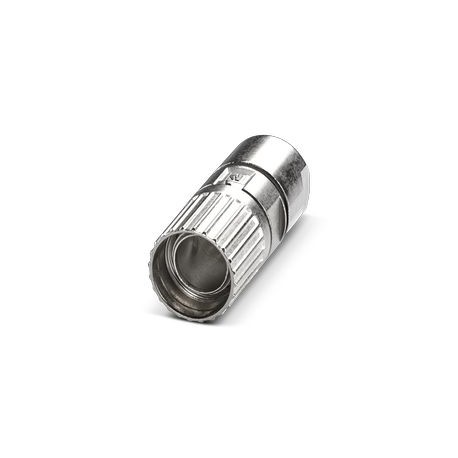

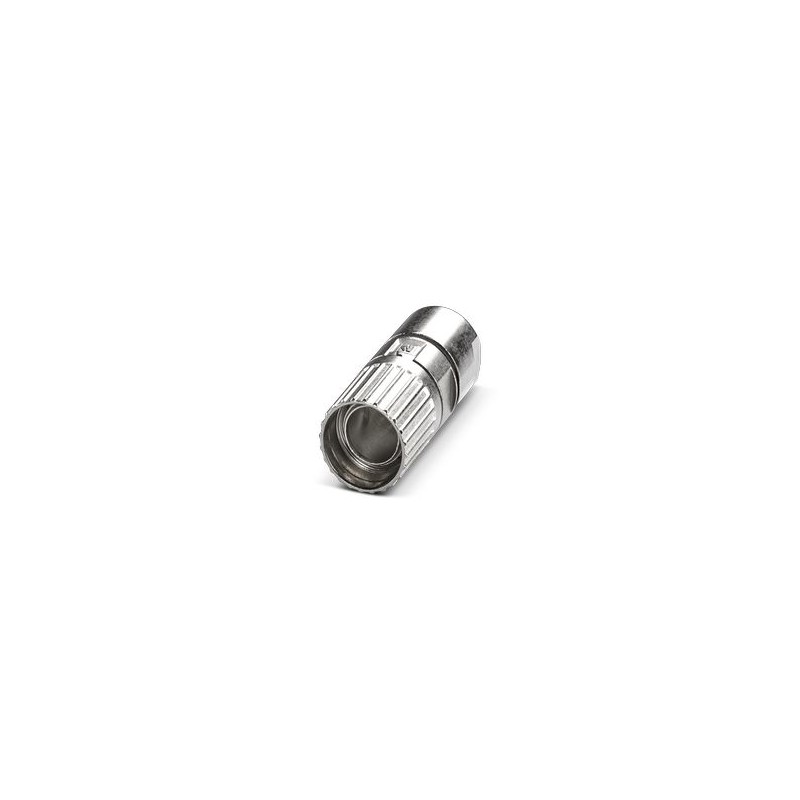

M23-000000080DU-SIG 1554098 PHOENIX CONTACT Cable connector, series: M23 PRO Signal, straight, screw lock, s..
M23-000000080DU-SIG
1554098
PHOENIX_CONTACT
Cable connector, series: M23 PRO Signal, straight, screw lock, shielding: yes, note: can only be used in combination with the contact inserts indicated on the accessories; For safety information and installation instructions, see reference article 1629213 (crimped version) or 1340700 (welded version)
Overhead housing for plug-in connector for cables
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Contact inserts must be ordered separately |
| Product Type | Aerial Housings |
| application | Signal |
| Series | M23 PRO Signal |
| Shielded | Yes |
| Pg Cable Glands | without |
| AWG Conductor Section | (Converted according to IEC) |
| Gasket material | FKM |
| Shell material | GD-Zn |
| Construction | straight |
| Housing | |
| Shell material | GD-Zn |
| Lock Type | Screw lock |
| Pg Cable Glands | without |
| Protection Index (inserted) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread Type | M23 |
| Meeting | |
| Cable Outer Diameter | 3 mm ... 15 mm (Universal Shutter Ring) |
| Gasket material | FKM |
| Mechanical data | |
| Plug Cycles | 100 |
| Environmental conditions | |
| Protection Index | IP66 / IP68 (2 m / 24 h) |
| Ambient Temperature (Service) | -40 °C ... 105 °C (see derating) |
| Altitude | 2000 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
