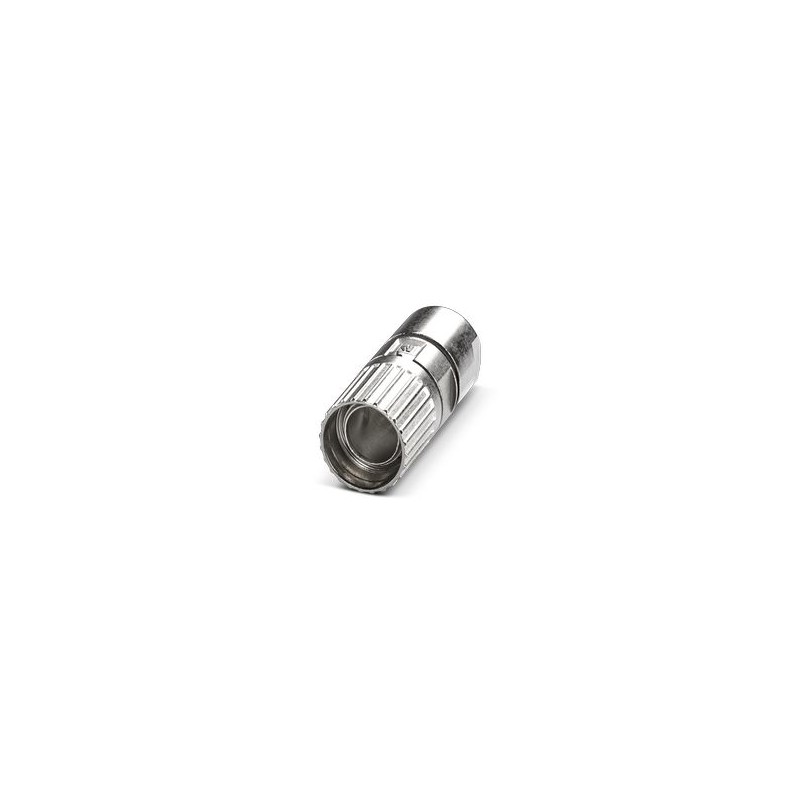

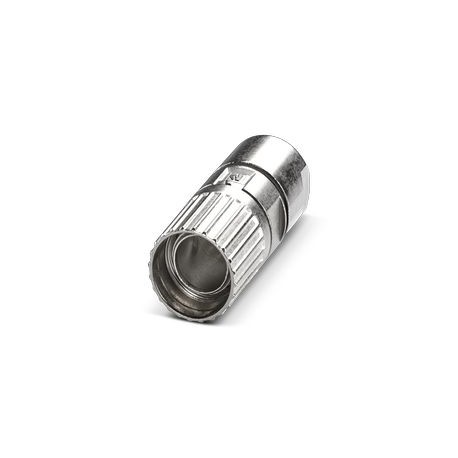

M23-00000008004-SIG 1554096 PHOENIX CONTACT Overhead housing for plug-in connector for cables
M23-00000008004-SIG
1554096
PHOENIX_CONTACT
Overhead housing for plug-in connector for cables
Cable connector, series: M23 PRO Signal, straight, screw locking mechanism, shielded: yes, note: can only be used in combination with the contact inserts listed under accessories; for safety notes and installation notes see reference item 1629213 (crimp version) or 1340700 (solder version)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Order contact inserts separately |
| Product type | Sleeve housings |
| Application | Signal |
| Series | M23 PRO Signal |
| Shielded | yes |
| Pg screw connection | none |
| Cross section AWG | (converted acc. to IEC) |
| Seal material | FKM |
| Housing material | GD-Zn |
| Type | straight |
| Housing | |
| Housing material | GD-Zn |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread type | M23 |
| Seal | |
| External cable diameter | 9 mm ... 15 mm |
| Seal material | FKM |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Ambient conditions | |
| Degree of protection | IP66 / IP68 (2 m / 24 h) |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Altitude | 2000 m |
