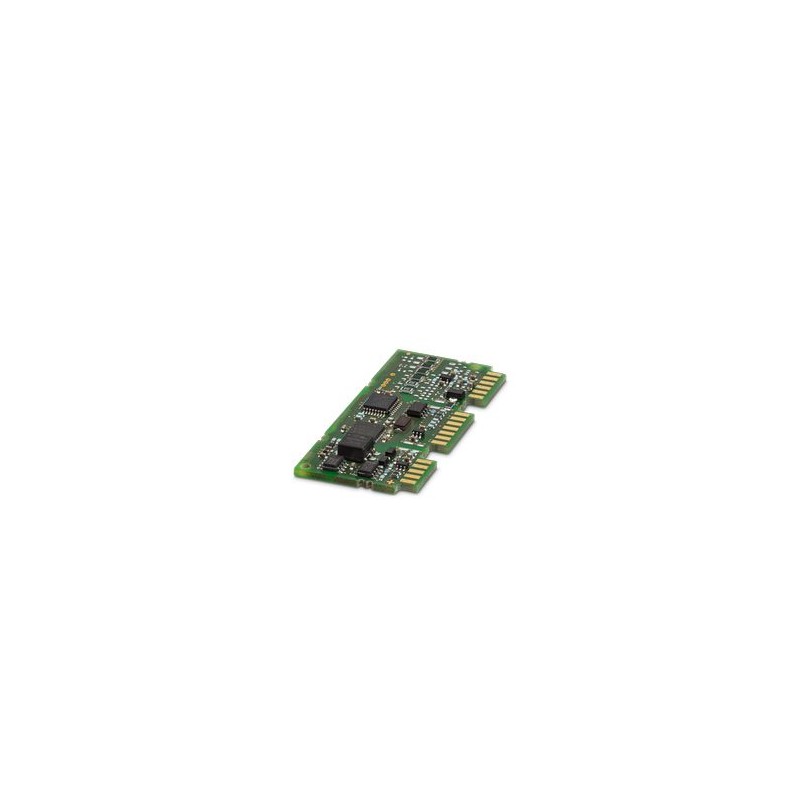

LUMGATE MCU 1357190 PHOENIX CONTACT Decoupling the main plate from the Lumgate 277 2DI/DOR/1AO.
LUMGATE MCU
1357190
PHOENIX_CONTACT
10
Decoupling the main plate from the Lumgate 277 2DI/DOR/1AO.
Decoupling of the motherboard of the Lumgate 277 2DI/DOR/1AO.
Light control > Lighting control system component
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Gateways/Proxies |
| Insulation properties | |
| Surge Category | II |
| Degree of contamination | 2 |
| Module | |
| ID code (dec) | 51 |
| ID code (hex) | 33 |
| Input address space | 16 Bit |
| Output address space | 16 Bit |
| Power supply: Module electronics | |
| Connection technology | Wave Soldering Contacts |
| Supply voltage | max. 5 V DC |
| Supply voltage range | 4.5V DC ... 5.5 V DC -10 % ... +10 % |
| Current consumption | max. 130 mA |
| Power consumption | 0.65 W |
| Digital | |
| Naming Entrance | Digital inputs |
| Number of inputs | 2 (Open Collector) |
| Connection type | Wave Soldering Contacts |
| Analog | |
| Naming Output | Analog Output |
| Number of outputs | 1 |
| Resolution D/A converter | 8 Bit |
| Output signal current | 2 mA |
| Digital | |
| Naming Output | Digital outputs |
| Number of outputs | 2 |
| Output voltage | 5 V DC |
| Output current | 100 mA |
| Conductor cross-section AWG | (converted to IEC) |
| Transmission speed | 500 kBaud |
| Width | 64.5 mm |
| Height | 32 mm |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 65 °C |
| Degree of protection | IP00 |
| Air Pressure (Operating) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operating) | 5 % ... 90 % (according to DIN EN 61131-2) |
| 5 % ... 95 % (up to 45 °C according to EN 60068-2-78:2013) | |
| Permissible humidity (storage/transport) | 5 % ... 90 % (according to DIN EN 61131-2) |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 64.5 mm |
| Height (EF000040) | 32 mm |
Datasheet - PDF
