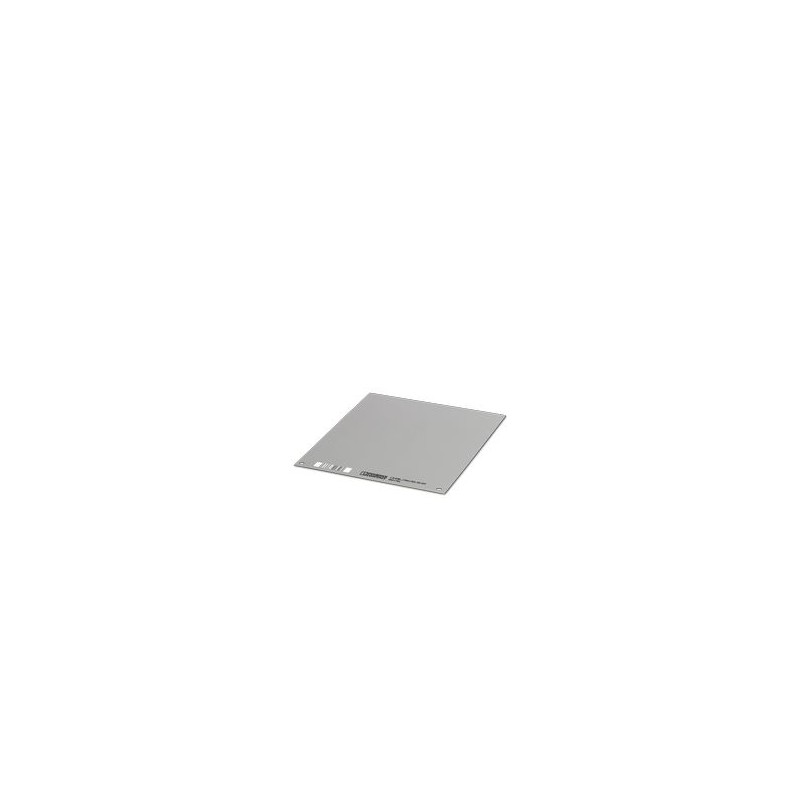

LS-EML (180X180) SR-BK 0831785 PHOENIX CONTACT Device marker, sheet, silver/black, unlabeled, labelable with..
LS-EML (180X180) SR-BK
0831785
PHOENIX_CONTACT
10
Device marker, sheet, silver/black, unlabeled, labelable with: TOPMARK NEO, TOPMARK LASER, mounting class: glued, useful surface: 180 x 180 mm, Number of individual indexes: 1
Device marker, Sheet, silver/black, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, mounting type: adhesive, lettering field size: 180 x 180 mm, Number of individual labels: 1
Auxiliary material > Labelling material
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Device marking |
| Marking | |
| Number of individual labels | 1 |
| Identification technology | Direct laser marking |
| Mounting type | adhesive |
| Color | silver/black |
| Material | Polyacrylate |
| Components | free from silicone and halogen |
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| Scratch test for the determining scratch resistance | |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
| Tesafilm test | |
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Duration | 168 h |
| Temperature for testing | 200 °C |
| Temperature resistance | |
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 150 °C (180 °C) | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Diesel [CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Salt spray test | |
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 200 °C |
| Recommended ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Recommended humidity (storage/transport) | 40 % ... 60 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
| Width | 180 mm |
| Length | 180 mm |
| Material strength | 0.06 mm |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
