> PHOENIX CONTACT >PCB Connectors (PCC)>LPTA 2,5/ 2-5,0 BK 1532637 PHOENIX CONTACT PCB terminal, nominal current: 24 A, nominal voltage (III/2): 400..
Previous Product Next Product

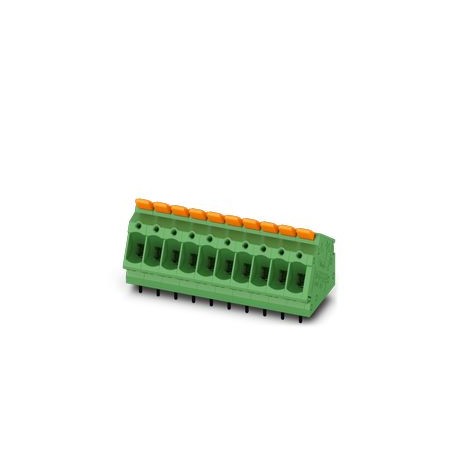

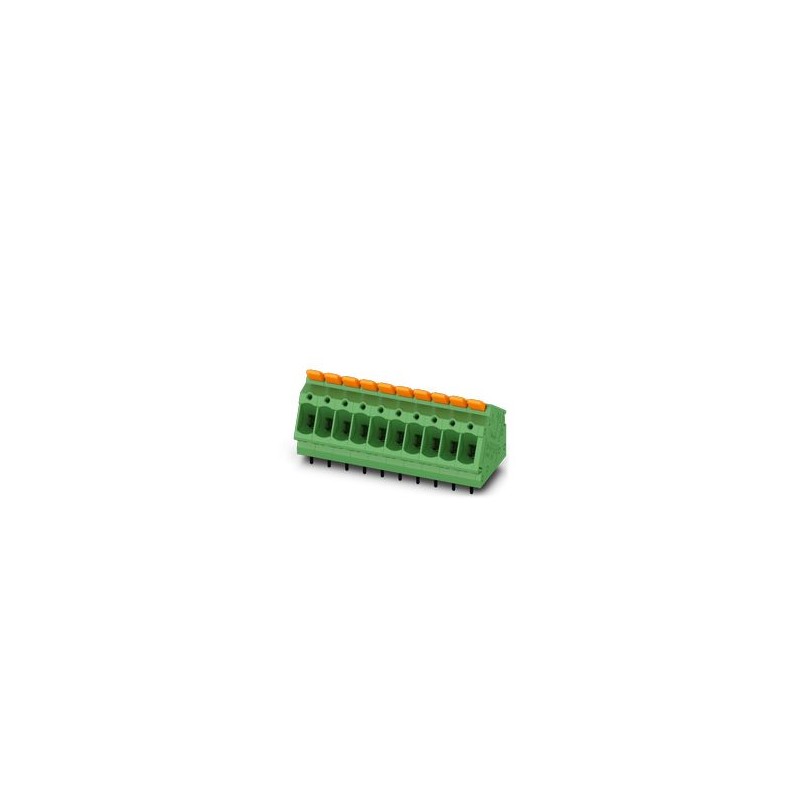

LPTA 2,5/ 2-5,0 BK 1532637 PHOENIX CONTACT PCB terminal, nominal current: 24 A, nominal voltage (III/2): 400.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPTA 2,5/ 2-5,0 BK 1532637 PHOENIX CONTACT PCB terminal, nominal current: 24 A, nominal voltage (III/2): 400..

LPTA 2,5/ 2-5,0 BK

1532637

PHOENIX_CONTACT

100

PCB terminal, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of rows: 1, number of poles per row: 2, article family: LPTA 2.5/, pitch: 5 mm, connection type: Push-in lever connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 30°, Color: Black, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 3.5mm, Packing Type: Boxed Packaging

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of rows: 1, number of positions per row: 2, product range: LPTA 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $107.23
Unit price: $1.07

Quantity Price
100+$1.07
300+$0.98
600+$0.88
800+$0.85
1100+$0.83
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Related products

▲

More info

▲


Technical data
Product properties
Product lineCOMBICON Terminals M
Product typePrinted circuit board terminal
Product familyLPTA 2,5/
Number of positions2
Pitch5 mm
Number of rows1
Pin layoutLinear pinning
Electrical properties
Nominal current IN24 A
Nominal voltage UN400 V
Degree of pollution3
Rated voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
Nominal cross section2.5 mm²
Conductor connection
Connection methodLever Push-in connection
Conductor cross section rigid0.2 mm² ... 4 mm² (Conductor connection with open terminal point)
0.5 mm² ... 4 mm² (Push-in connection)
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.2 mm² ... 2.5 mm² (Conductor connection with open terminal point)
1.5 mm² ... 2.5 mm² (Push-in connection)
Conductor cross section, flexible, with ferrule, with plastic sleeve0.2 mm² ... 2.5 mm² (Conductor connection with open terminal point)
0.5 mm² ... 2.5 mm² (Push-in connection)
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Stripping length10 mm ... 12 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface soldering area (top layer)Tin (10 - 16 µm Sn)
Material data - housing
Color (Housing)black (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPA GF
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Dimensions
Dimensional drawinggklwlyybhu.jpg
Pitch5 mm
Width [w]11.5 mm
Height [h]23.78 mm
Length [l]21.35 mm
Installed height20.28 mm
Solder pin length [P]3.5 mm
PCB design
Hole diameter1.3 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
4 mm² / solid / > 60 N
4 mm² / flexible / > 60 N
0.5 mm² / solid / > 20 N
Electrical tests
Temperature-rise test
SpecificationIEC 60947-7-4:2019-01
Requirement temperature-rise testThe sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Short-time withstand current
SpecificationIEC 60947-7-4:2019-01
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances |
SpecificationIEC 60947-7-4:2019-01
Insulating material groupI
Rated insulation voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed50 m/s² (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Glow-wire test
SpecificationIEC 60695-2-10:2013-04
Temperature850 °C
Time of exposure5 s
Aging
SpecificationIEC 60947-7-4:2019-01
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
