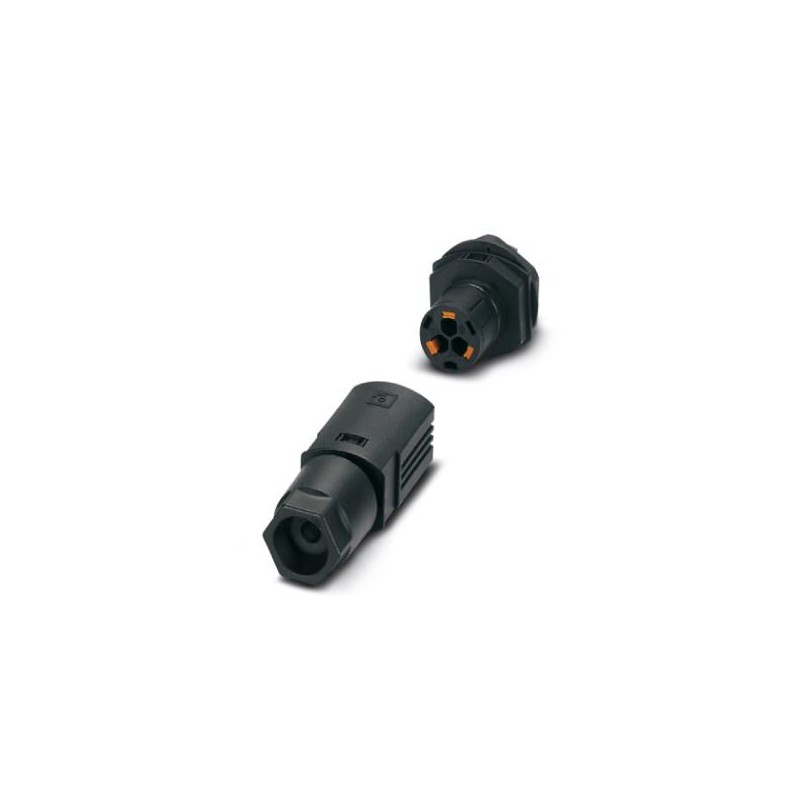

IPD WD 3P2,5 M25 BK 1047324 PHOENIX CONTACT Panel feed-through, Push-in connection, number of positions: 2+P..
IPD WD 3P2,5 M25 BK
1047324
PHOENIX_CONTACT
Panel feed-through, Push-in connection, number of positions: 2+PE, 0.5 mm² ... 2.5 mm², 690 V, 20 A, black, cable diameter range: 6 mm ... 9 mm and 8 mm ... 13 mm, Push-in connection
Feedthrough, Push-in connection, number of poles: 2+PE, 0.5 mm² ... 2.5 mm², 600 V, 20 A, black, outer diameter of the cable: 6 mm ... 9 mm and 8 mm... 13 mm, mounting thread: M25, Push-in connection
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1047324 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626647692 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Color | black |
|---|---|
| Connection method | Push-in connection |
| Push-in connection | |
| Number of positions | 3 |
| Note number of positions | 2+PE |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (2 m / 24 h) | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Temperature when conductor connected | 5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
|---|---|
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated surge voltage (III/3) | 6 kV |
Mechanical characteristics
| Frequency of connections | max. 10 |
|---|---|
| Insertion/withdrawal cycles | 10 |
| Category of shock impact | IK07 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 690 V |
| Rated current (EF000227) | 20 A |
| Number of poles (EF001391) | 3 |
| Degree of protection (IP) (EF005474) | IP66 |
| Connection size thread (EF004756) | M25 |
| Number of connections per pole (EF006769) | 1 |
| Pole codification (EF006771) | L, N, PE |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Black |
| Colour of the separate adapter piece (EF008312) | Black |
| Housing colour (EF000136) | Black |
| Housing material (EF001596) | Polyamide (PA) |
| Halogen free (EF000025) | No |
| Length (EF001438) | 90.825 mm |
| Height (EF000040) | 35.14244 mm |
| Width (EF000008) | 35.14244 mm |
Datasheet - PDF
