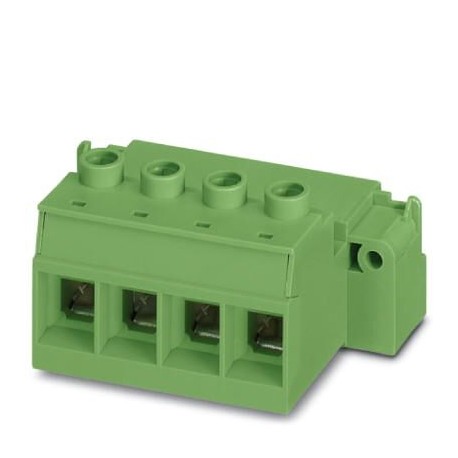

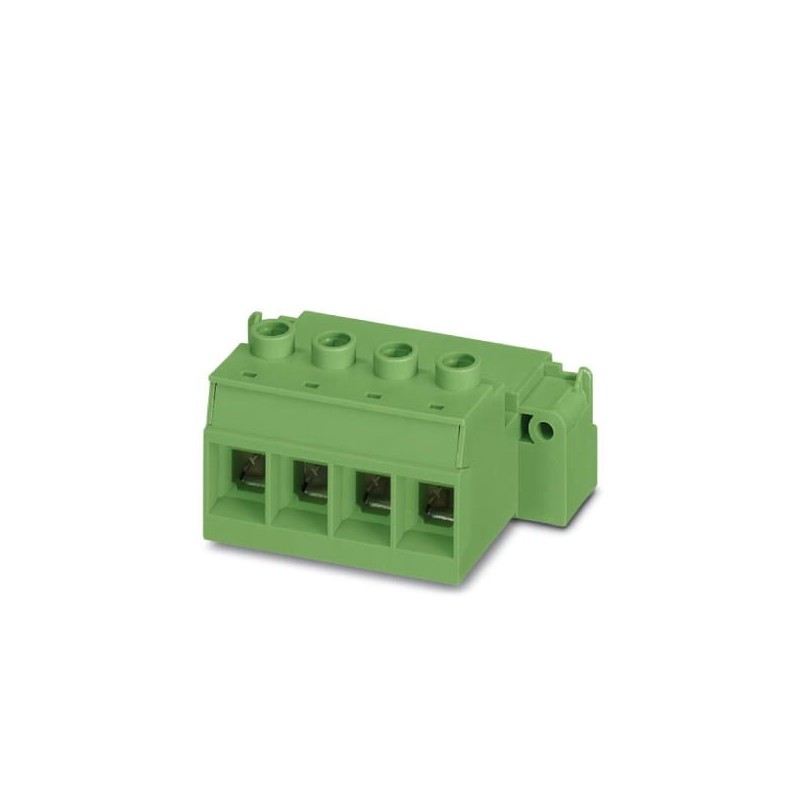

IPC 35 HC/ 4-STGF-15,00 OG 1862660 PHOENIX CONTACT PCB connector, nominal current: 125 A, rated voltage (III..
IPC 35 HC/ 4-STGF-15,00 OG
1862660
PHOENIX_CONTACT
25
PCB connector, nominal current: 125 A, rated voltage (III/2): 1000 V, number of positions: 4, pitch: 15 mm, connection method: Screw connection with tension sleeve, color: orange, contact surface: Silver
Connector for printed circuit board, nominal section: 35 mm², color: orange, nominal current: 125 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Male, Number of potentials: 4, Number of rows:1, Number of poles per row: 4, number of connections: 4, family of articles: IPC 35 HC/.. -STGF, pitch: 15mm, connection type: Screw connection with traction capsule, conductor/printed circuit board connection direction: 0°, Stecksystem: POWER COMBICON 35, Locking: Screw lock, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB connector, nominal current: 125 A, rated voltage (III/2): 1000 V, number of positions: 4, pitch: 15 mm, connection method: Screw connection with tension sleeve, color: orange, contact surface: Silver
Key Commercial Data
| Orderkey | 1862660 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626195667 |
| Custom tariff number | 85366990 |
Dimensions
| Length [ l ] | 58 mm |
|---|---|
| Width [ w ] | 61.3 mm |
| Height [ h ] | 40 mm |
| Pitch | 15 mm |
| Dimension a | 45 mm |
General
| Range of articles | IPC 35 HC/..-STGF |
|---|---|
| Number of positions | 4 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 1000 V |
| Nominal current IN | 125 A |
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V0 |
| Screw thread | M5 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
ETIM
| ETIM 5.0 | EC002638 |
|---|---|
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
UNSPSC
| UNSPSC 13.2 | 39121409 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
