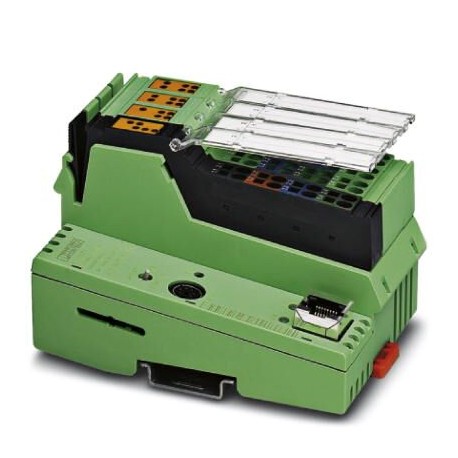

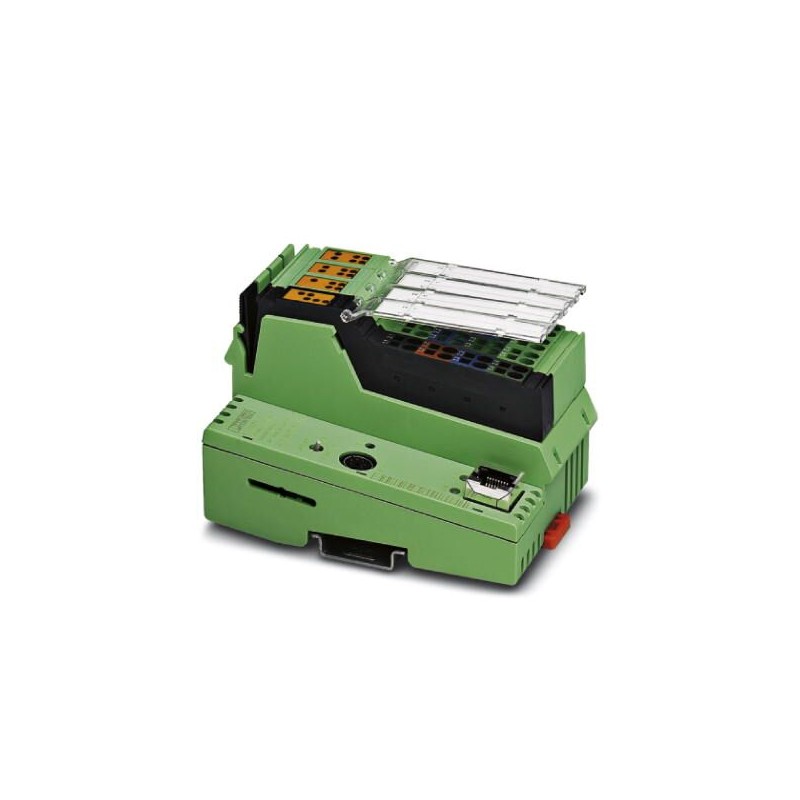

ILC 151 GSM LICENCE PACKAGE 2400268 PHOENIX CONTACT ILC 151 GSM LICENCE PACKAGE includes ILC 151 GSM ETH (Or..
ILC 151 GSM LICENCE PACKAGE
2400268
PHOENIX_CONTACT
ILC 151 GSM LICENCE PACKAGE includes ILC 151 GSM ETH (Order No. 2700977) and SD FLASH 512MB APPLIC A (Order No. 2701799).
ILC 151 GSM LICENCE PACKAGE contains ILC 151 GSM ETH (code: 2700977) and SD FLASH 512MB APPLIC A (code: 2701799).
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2400268 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626006543 |
| Weight per Piece (excluding packing) | 360.000 g |
| Custom tariff number | 85371091 |
| Country of origin | DE (Germany) |
Control system
| Engineering tool | PC WORX |
|---|---|
| PC WORX EXPRESS | |
| Diagnostics tool | DIAG+ |
| Configuration tool | Config+ Version 1.01 or later |
Fieldbus function
| Amount of process data | max. 4096 Bit (INTERBUS) |
|---|---|
| Number of supported devices | max. 128 |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 16 |
| Number of supported branch terminals with remote bus branch | max. 3 |
Direct I/Os
| Input name | Digital inputs |
|---|---|
| Number of inputs | 16 |
| Connection method | Inline potential distributor |
| Connection technology | 2, 3, 4-wire |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Output name | Digital outputs |
| Number of outputs | 4 |
| Connection method | Spring-cage connection |
| Connection technology | 2, 3, 4-wire |
| Maximum output current per channel | 500 mA |
IEC 61131 runtime system
| Engineering tool | PC WORX |
|---|---|
| PC WORX EXPRESS | |
| Program memory | 512 kByte (43 K instructions (IL)) |
| Mass storage | 512 kByte |
| Retentive mass storage | 48 kByte (NVRAM) |
| Number of control tasks | 8 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| 1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4 | |
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27371392 |
|---|---|
| eCl@ss 4.0 | 27378000 |
| eCl@ss 4.1 | 27378000 |
| eCl@ss 5.0 | 27379100 |
| eCl@ss 5.1 | 27379100 |
| eCl@ss 6.0 | 27379200 |
| eCl@ss 7.0 | 27379201 |
| eCl@ss 8.0 | 27379201 |
| eCl@ss 9.0 | 27379201 |
UNSPSC
| UNSPSC 13.2 | 39121421 |
|---|---|
| UNSPSC 18.0 | 39121421 |
| UNSPSC 19.0 | 39121421 |
| UNSPSC 20.0 | 39121421 |
| UNSPSC 21.0 | 39121421 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
