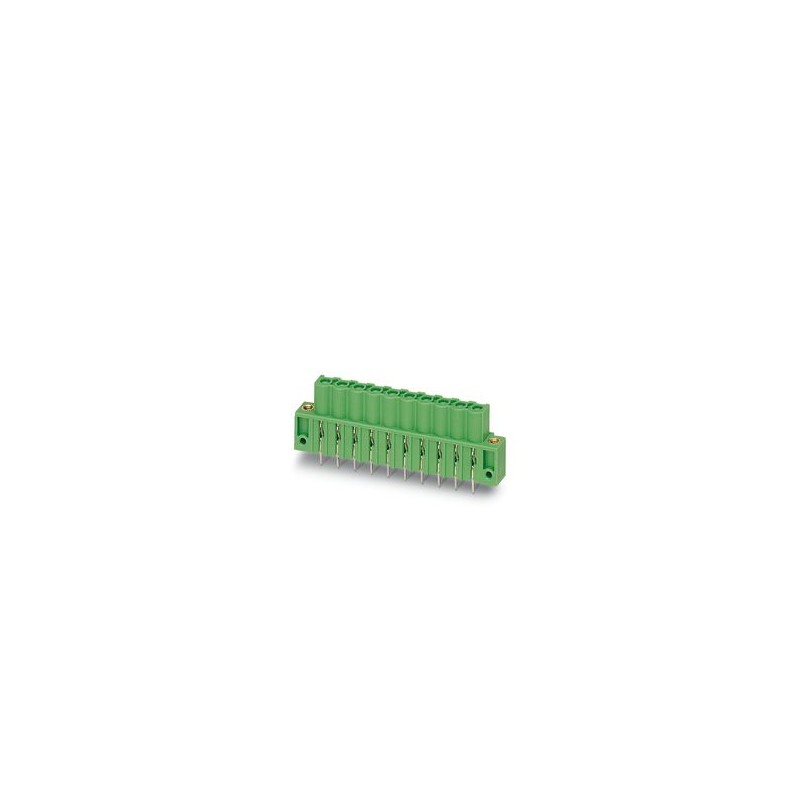

ICV 2,5/12-GF-5,08 BK 1778311 PHOENIX CONTACT Housing base printed circuit board, nominal current: 12 A, num.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ICV 2,5/12-GF-5,08 BK 1778311 PHOENIX CONTACT Housing base printed circuit board, nominal current: 12 A, num..

ICV 2,5/12-GF-5,08 BK

1778311

PHOENIX_CONTACT

50

Housing base printed circuit board, nominal current: 12 A, number of poles: 12, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: wave Soldering

Base housing printed circuit board, nominal section: 2.5 mm², color: black, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Connection female, Number of potentials: 12, Number of rows: 1, Number of poles per row: 12, number of connections: 12, article family: ICV 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Double linear pin arrangement, pin length [P]: 3.6 mm, Stecksystem:CLASSIC COMBICON, Locking: Screw lock, packing type: box packed

PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: ICV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.6 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $359.04
Unit price: $7.18

Quantity Price
50+$7.18
100+$7.09
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data
Product properties
Product lineCOMBICON Connectors M
Product typePCB headers
Product familyICV 2,5/..-GF
Number of positions12
Pitch5.08 mm
Number of connections12
Number of rows1
Mounting flangeThreaded flange
Number of potentials12
Pin layoutLinear pinning
Solder pins per potential2
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Degree of pollution3
Contact resistance1.3 mΩ
Rated voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Flange
Tightening torque0.3 Nm
Attachment on the PCB
Tightening torque0.3 Nm
ScrewSheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST 2,2x6,5 C
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)black (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawingxafhfprsoi.jpg
Pitch5.08 mm
Width [w]71.08 mm
Height [h]22.6 mm
Length [l]10.2 mm
Installed height19 mm
Solder pin length [P]3.6 mm
Pin dimensions0.5 x 1.14 mm
PCB design
Hole diameter1.4 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.12 N
Withdraw strength per pos. approx.10 N
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions16
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)320 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level4.8 kV
Contact resistance R11.3 mΩ
Contact resistance R21.4 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress105 °C/168 h
Power-frequency withstand voltage2.21 kV
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeSemi-sinusoidal
Acceleration30g
Shock duration18 ms
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
