ICS25-F22U-1018 1287377 PHOENIX CONTACT Rail box, ICS cap, with USB open section, width: 25 mm, height: 7.25..
ICS25-F22U-1018
1287377
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.

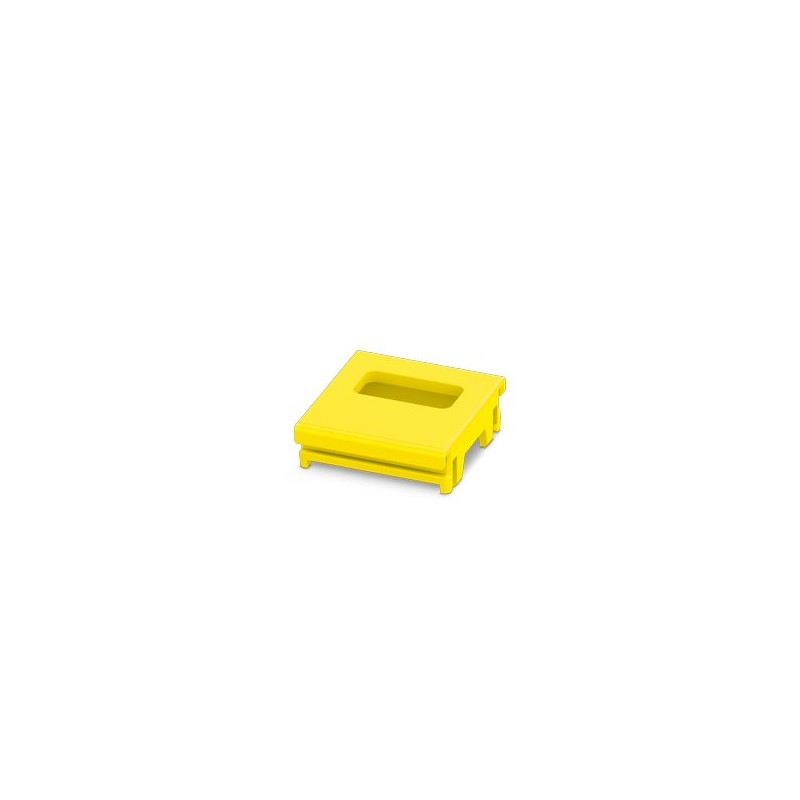

Rail box, ICS cap, with USB open section, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, colour: yellow (Similar RAL 1018)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Look at the series datasheet in the download area. |
| Product Type | Connector Panel |
| Product Family | ICS25 |
| Execution | ICS cap, with USB open section |
| Type of housing | Lane box |
| Available ventilation hole | No |
| Housing Series | .ICS |
| AWG Conductor Section | (Converted according to IEC) |
| Dimension Scheme |  |
| Width | 25 mm |
| Height | 7.25 mm |
| Depth | 22.4 mm |
| Printed circuit board design | |
| Printed Circuit Board Thickness | 1.4 mm ... 1.8 mm |
| Colour | Yellow (1018) |
| Flammability class according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface Characteristics | Not Treated |
| Shell material | Polyamide |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2014-11 |
| Temperature | 850 °C |
| Performance Time | 30 sec |
| Heat Resistance/Spherical Pressure Check | |
| Test Specification | DIN EN 60695-10-2 (VDE 0471-10-2):2016-01 |
| Temperature | 125 °C |
| Duration of the trial | 1 h |
| Strength | 20 N |
| Mechanical Strength/Descending Drum | |
| Test Specification | DIN EN 60068-2-31 (VDE 0468-2-31):2009-04 |
| Drop Height | 50 cm |
| frequency | 50 |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoid |
| Acceleration | 35% |
| Duration of the crash | 11 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Testing for substances that are harmful to varnish wetting | |
| Test Specification | VDMA 24364:2018-05 |
| Result | Approved Test |
| Environmental conditions | |
| Maximum achievable IP code | IP20 |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on dissipation) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 55 °C |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Relative humidity of the air (storage/transport) | 80 % |
| Number of PCB Housings | 2 |
| Printed Circuit Board Attachment Type | Insertion |
| Printed Circuit Board Thickness | 1.4 mm ... 1.8 mm |
| Type of mounting | Insertion |
| Outer packing type | Zip-top bag |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
