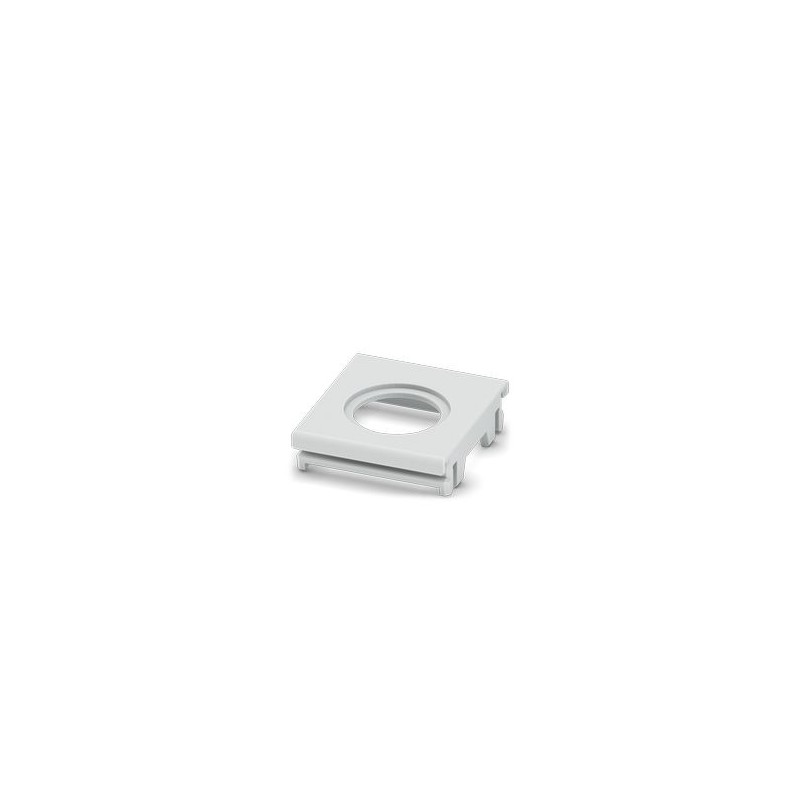

ICS25-F22M12-7035 1558623 PHOENIX CONTACT Rail housing, ICS plug, with open section M12, width: 25 mm, heigh..
ICS25-F22M12-7035
1558623
PHOENIX_CONTACT
10
Rail housing, ICS plug, with open section M12, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, colour: light grey (Similar RAL 7035)
Rail Box, ICS Plug
DIN rail housing, ICS filler, with M12 function cutout, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, color: light grey (7035)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Refer to the data sheet for the range in the download area. |
| Product type | Connection plate |
| Product family | ICS25 |
| Type | ICS filler, with M12 function cutout |
| Housing type | DIN rail housing |
| Ventilation openings present | no |
| Housing series | ICS |
| Cross section AWG | (converted acc. to IEC) |
| Dimensional drawing |  |
| Width | 25 mm |
| Height | 7.25 mm |
| Depth | 22.4 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color | light grey (7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface characteristics | untreated |
| Housing material | Polyamide |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Number of PCB holders | 2 |
| Type of PCB mount | Slot |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | Slot |
| Outer packaging type | Resealable bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
