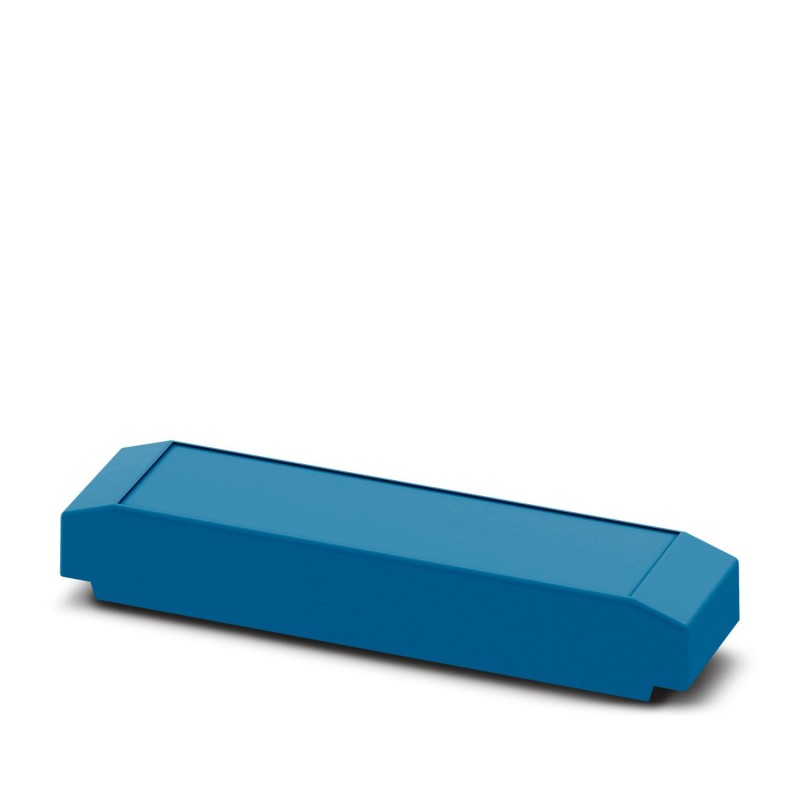

ICS25-C100X12-5015 1072378 PHOENIX CONTACT DIN rail housing, Upper part, closed, width: 25 mm, height: 100 m..
ICS25-C100X12-5015
1072378
PHOENIX_CONTACT
10
DIN rail housing, Upper part, closed, width: 25 mm, height: 100 mm, depth: 12 mm, color: blue (5015)
Cabinet enclosures > Electronic enclosure
Housing (HS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Item properties
| Brief article description | Upper part of housing |
|---|---|
| Type | ICS25-C100X12-5015 |
| Order No. | 1072378 |
| Housing type | DIN rail housing |
| Type | Upper part, closed |
| Max. IP code to attain | IP20 |
| Mounting type | Snap in |
Material data
| Color (RAL) | blue (5015) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
Mechanical strength/tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
|---|---|
| Height of fall | 50 cm |
| Number of drop cycles | 50 |
Thermostability (Ball Thrust Test)
| Specification | IEC 60695-10-2:2014-02 |
|---|---|
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 |
Test for assessing the risk of fire (glow wire)
| Specification | IEC 60695-2-11:2014-02 |
|---|---|
| Temperature | 850 °C |
| Time of exposure | 30 s |
Test for substances that would hinder coating with paint or varnish
| Specification | VW PV 3.10.7:2005-02 |
|---|
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | Refer to the data sheet for the range in the download area. |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180505 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
