ICS25-B100X98-V-7035
2203881
PHOENIX_CONTACT
10

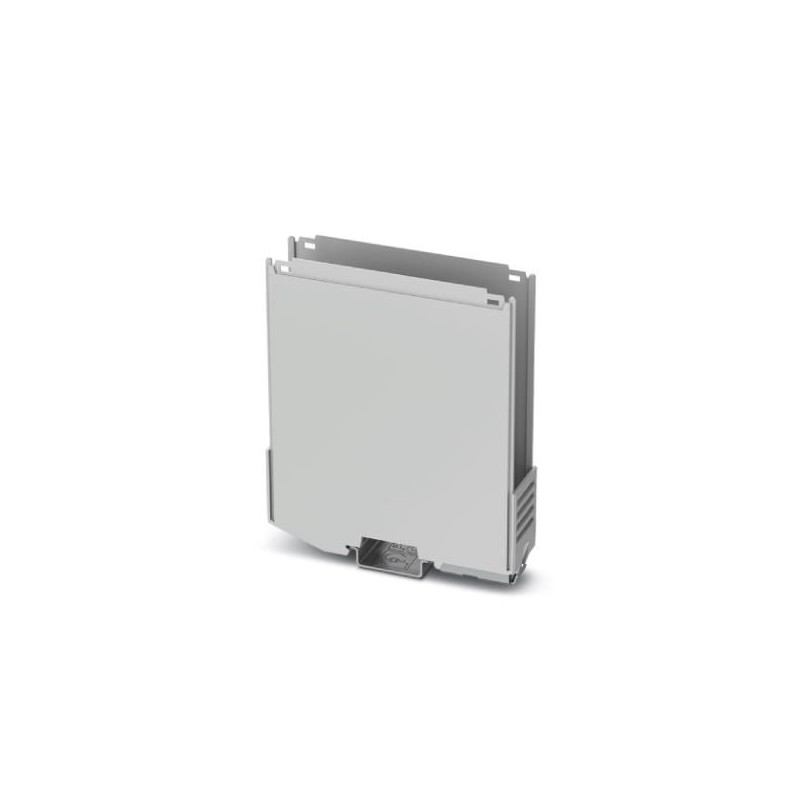

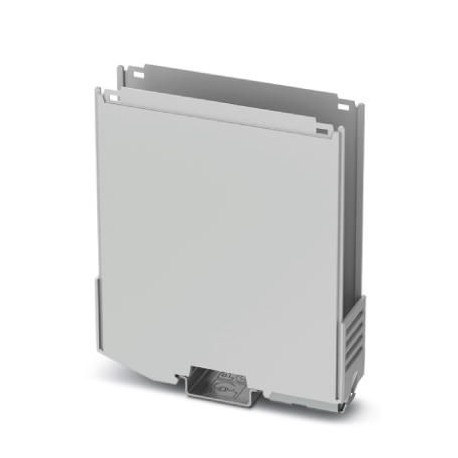

Mounting base housing
Housing (HS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2203881 |
---|---|
Packing unit | 10 pc |
Minimum order quantity | 10 pc |
GTIN | 4055626465562 |
Weight per Piece (excluding packing) | 22.220 g |
Custom tariff number | 85389099 |
Country of origin | DE (Germany) |
Brief article description | Mounting base housing |
---|---|
Type | ICS25-B100X98-V-7035 |
Order No. | 2203881 |
Housing type | |
Type | Lower part |
Ventilation openings present | yes |
Width [ w ] | 25 mm |
---|---|
Height [ h ] | 100 mm |
Depth from top edge of DIN rail [ d ] | 98 mm |
Dimensions | 25 mm x 100 mm x 110 mm (Lower housing part with upper housing part) |
Color (similar to RAL) | light gray (7035) |
---|---|
Flammability rating according to UL 94 | V0 |
Housing material | PA 6.6 |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 100 °C |
Ambient temperature (operation) | -40 °C ... 100 °C (observe derating) |
Ambient temperature | 20 °C |
---|---|
Reduction factor | 1 |
Mounting position | vertical |
Power dissipation | 17 W |
Ambient temperature | 40 °C |
---|---|
Reduction factor | 0.67 |
Mounting position | vertical |
Ambient temperature | 60 °C |
---|---|
Reduction factor | 0.41 |
Mounting position | vertical |
Ambient temperature | 80 °C |
---|---|
Reduction factor | 0.22 |
Mounting position | vertical |
Specification | IEC 60068-2-6:2007-12 |
---|---|
Frequency | 10 - 150 - 10 Hz |
Sweep speed | 1 octave/min |
Amplitude | 0.15 mm (10 - 58.1 Hz) |
Acceleration | 2g (58.1 - 150 Hz) |
Test duration per axis | 2.5 h |
Test directions | X-, Y- and Z-axis |
Specification | IEC 60068-2-27:2008-02 |
---|---|
Pulse shape | Semi-sinusoidal |
Acceleration | 15g |
Shock duration | 11 ms |
Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) |
Specification | IEC 60695-10-2:2014-02 |
---|---|
Temperature | 125 °C |
Test duration | 1 h |
Force | 20 |
Specification | IEC 60695-2-11:2014-02 |
---|---|
Temperature | 850 °C |
Time of exposure | 30 s |
Specification | VW PV 3.10.7:2005-02 |
---|
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
