ICS20-F22U-1018 1287385 PHOENIX CONTACT Rail box, ICS plug, with USB open section, width: 20 mm, height: 7.2..
ICS20-F22U-1018
1287385
PHOENIX_CONTACT
10
Product on demand only, returns will not be accepted.

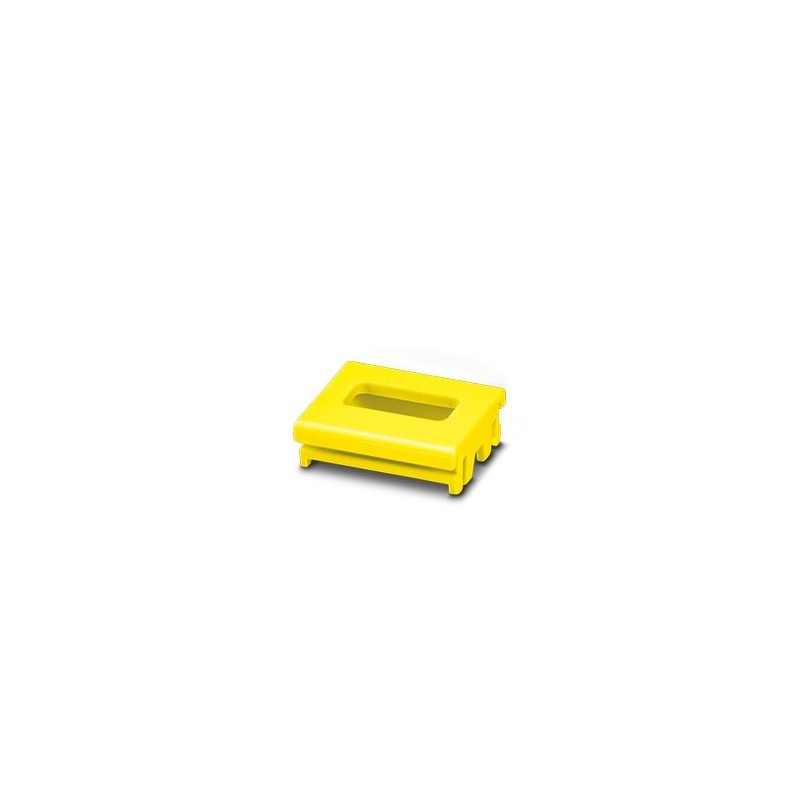

Rail box, ICS plug, with USB open section, width: 20 mm, height: 7.25 mm, depth: 22.4 mm, colour: yellow (Similar RAL 1018)
Mounting Rail Enclosures, Filler ICS, with USB Functional Opening, Width: 20 mm, Height: 7.25 mm, Depth: 22.4 mm, Color: Yellow (1018)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General notes | Please refer to the data sheet of the product series in the download area. |
| Product Type | Connections panel |
| Product Family | ICS20 |
| Execution | ICS filler, with USB functional opening |
| Enclosure type | Mounting Rail Enclosures |
| Ventilation opening available | no |
| Enclosure Series | ICS |
| Conductor cross-section AWG | (converted according to IEC) |
| Dimensioned Drawing |  |
| width | 20 mm |
| height | 7.25 mm |
| Depth | 22.4 mm |
| Printed circuit board design | |
| Printed circuit board thickness | 1.4 mm ... 1.8 mm |
| Color | Yellow (1018) |
| Combustibility class according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface Finish | untreated |
| Housing Material | Polyamide |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Glow Wire Test | |
| Test Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2014-11 |
| Temperature | 850 °C |
| Duration of application | 30 s |
| Heat Resistance / Ball Pressure Test | |
| Test Specification | DIN EN 60695-10-2 (VDE 0471-10-2):2016-01 |
| Temperature | 125 °C |
| Trial duration | 1 h |
| Force | 20 N |
| Mechanical Strength / Rotating Drum | |
| Test Specification | DIN EN 60068-2-31 (VDE 0468-2-31):2009-04 |
| Fall Height | 50 cm |
| Frequency | 50 |
| Shock | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Form | Semi-sinusoidal |
| Acceleration | 15g |
| Shock Duration | 11 ms |
| Number of shocks per direction | 3 |
| Test Directions | X, Y and Z axis (pos. and neg.) |
| Control of substances that hinder the wetting of paints | |
| Test Specification | VDMA 24364:2018-05 |
| Result | Test passed |
| Environmental conditions | |
| Max. IP code to be reached | Ip20 |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Relative humidity (transport and storage) | 80 % |
| Number of PCB housings | 2 |
| Type of fastening of the printed circuit board | Insertion |
| Printed circuit board thickness | 1.4 mm ... 1.8 mm |
| Mounting type | Insertion |
| Type of packaging | Resealable bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Yellow |
| RAL-number (EF000116) | 1018 |
