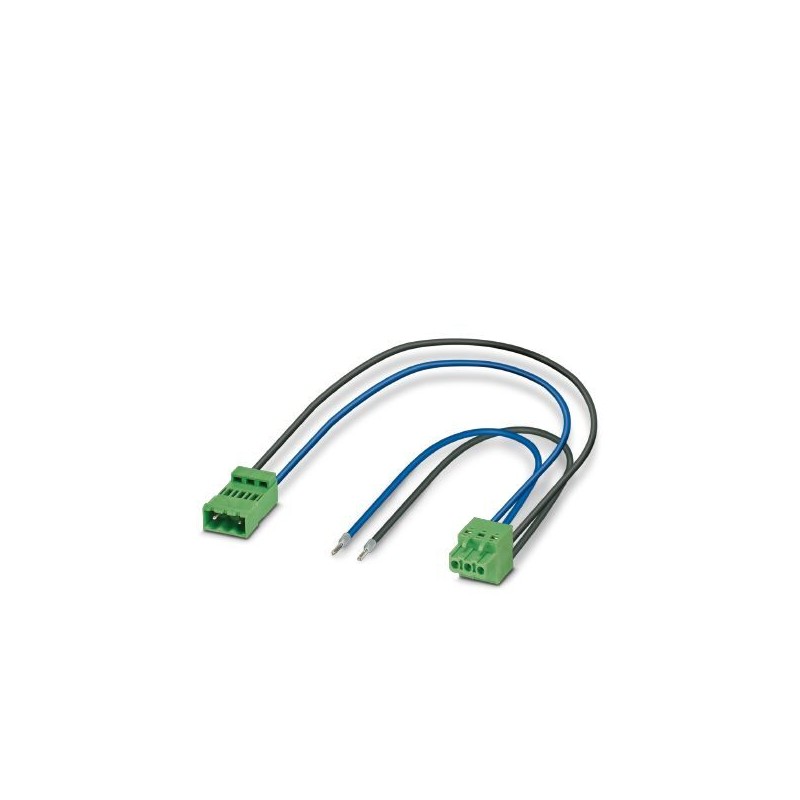

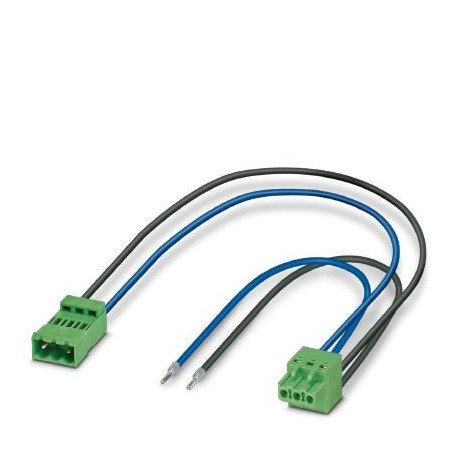

ICC/TVFKC/AI8/3P13L33-20SMGW 1714316 PHOENIX CONTACT Cable set
ICC/TVFKC/AI8/3P13L33-20SMGW
1714316
PHOENIX_CONTACT
50
Cable set
Assembled PCB connectors / Y-line with 2 PCB connectors, assigned current: 9 A, Header 1: 3-poles, pitch: 5.08 mm, Crimped connection, Male, Line 1: cable length: 0.33 m, Color: black, blue, Cable type: mPPE braided wire, Header 2: 3-poles, pitch: 5 mm, Push-in spring connection, Female, Line 2: cable length: 0.2 m, Color: black, blue, Cable type: mPPE braided wire, product feature: Printed circuit board connector for Smart Meter Gateways (SMGW), mPPE braided wire
Connectors > Accessories/spare parts for industrial connectors
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Assembled PCB connectors / Y-cable with 2 printed circuit board connectors, rated current: 9 A, Head 1: 3-position , Cable 1: cable length: 0.33 m, Color: Black, blue, Head 2: 3-position, 5 mm , Push-in spring connection , Female connector, Cable 2: cable length: 0.2 m, Color: Black, blue, product feature: PCB connectors for Smart Meter Gateways (SMGW)
Key Commercial Data
| Orderkey | 1714316 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626356839 |
| Custom tariff number | 85444290 |
Item properties
| Number of positions | 3 |
|---|
Electrical parameters
| Rated current | 9 A |
|---|
General information
| Type of note | Note on application |
|---|---|
| Note | Smart Meter Gateway (SMGW) |
Dimensions for the product
| Pitch | 5.08 mm |
|---|
Header 2
| Connection method | Push-in spring connection |
|---|---|
| Nominal cross section | 1.5 mm² |
| Pitch | 5 mm |
| Type of contact | Female connector |
| Color | green |
| Mounting flange | without |
Cables / lines 1
| Length of cable | 0.33 m |
|---|---|
| Single wire, color | Black, blue |
| Conductor structure signal line | 19x 0.25 mm |
| Conductor cross section | 0.82 mm² |
| Conductor material | Tin-plated Cu litz wires |
| UL AWM style GRP | 11028 |
Cables / lines 2
| Length of cable | 0.2 m |
|---|---|
| Single wire, color | Black, blue |
| Conductor structure signal line | 19x 0.25 mm |
| Conductor cross section | 0.82 mm² |
| Conductor material | Tin-plated Cu litz wires |
| UL AWM style GRP | 11028 |
Packaging information
| Pieces per package | 50 |
|---|---|
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -30 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (installation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (mobile installation) | -5 °C 100 °C dependent on the derating curve |
Environmental and durability tests (E)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
|---|---|
| Result, degree of protection, IP code | Finger safety with IP20 test finger |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440490 |
|---|---|
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440490 |
| eCl@ss 9.0 | 27440490 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
