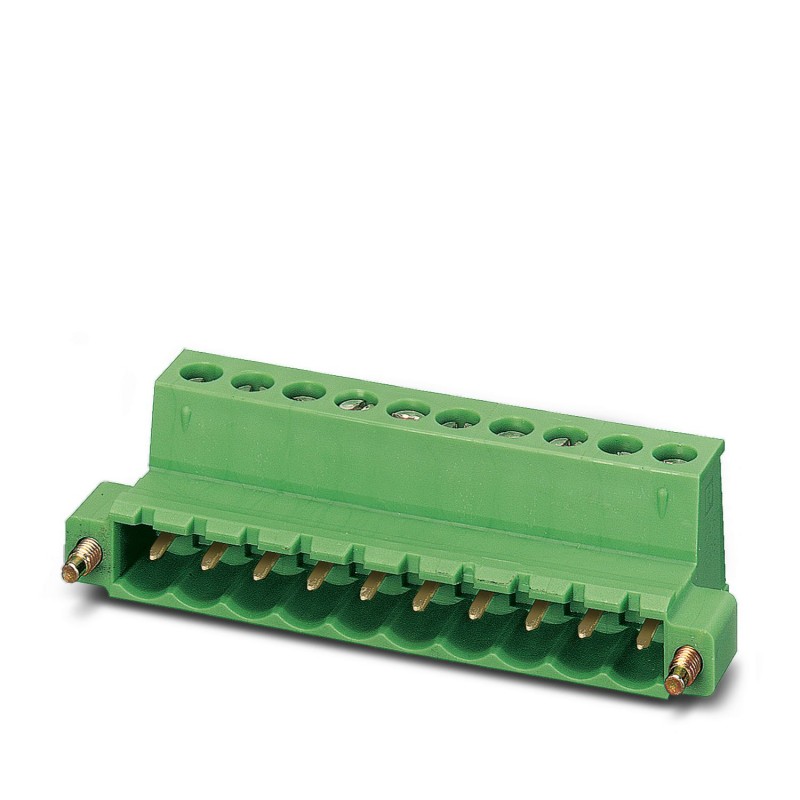

IC 2,5/11-STF-5,08 AU 1920697 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N..
IC 2,5/11-STF-5,08 AU
1920697
PHOENIX_CONTACT
50
Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 11,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-wheel drive,Color: green,contact Surface: Gold
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 11, number of rows: 1, number of poles: 11, number of connections: 11, family of articles: IC 2.5/.. -STF, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal groove, connection direction driver/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: Boxed Packaging
PCB connector, nominal cross-section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: Au, contact type: pin, number of potentials: 11, number of rows: 1, number of poles: 11, number of terminals: 11, article family: IC 2.5/.. -STF, Pitch: 5.08 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: L Longitudinal slot, Connection direction conductor/board: 0 °, Locking hook: - without locking hook, Plug-in system: COMBICON MSTB 2.5, Locking: Screw lock, Mounting type: Screw flange, Packaging type: packed in a carton
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Data commercial
| Key order | One million nine hundred twenty thousand six hundred ninety seven |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAFAA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion seventeen billion nine hundred eighteen million three hundred nineteen thousand one hundred thirteen |
| Unit weight (excluding packaging) | 19,173 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | (Germany) |
Overview
| Family of articles | IC 2,5/..-STF |
|---|---|
| Number of poles | Eleven |
| Type of connection | Connection by screw with capsule-traction |
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Nominal cross section | 2.5 mm2 |
| Maximum load current | 12 To |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
Data connection
| Core cross-section rigid min. | 0,2 mm2 |
|---|---|
| Section of conductor rigid max. | 2.5 mm2 |
| Section of flexible conductor, min. | 0,2 mm2 |
| Section of flexible conductor max. | 2.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 2.5 mm2 |
| Section of conductor AWG min. | Twenty four |
| Section of conductor AWG max. | Twelve |
| 2 conductors with same cross section, rigid min. | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. | 1 mm2 |
| 2 conductors with same cross section, flexible, min. | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. | 1.5 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. | 1 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. | 1.5 mm2 |
| AWG according to UL/CUL min. | Thirty |
| AWG according to UL/CUL max. | Twelve |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CSA | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred tenUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Other |
| Number of poles (EF001391) | 11 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Gold |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
