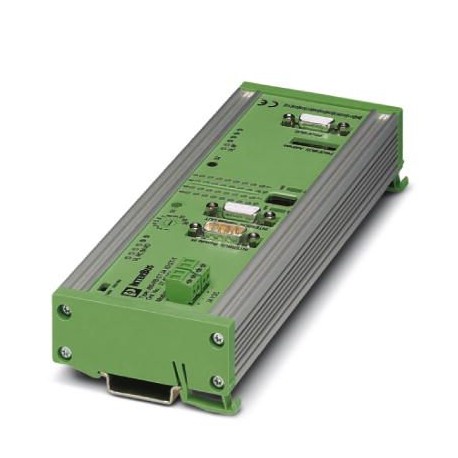

IBS-PB CT 24 IO GT-T 2742751 PHOENIX CONTACT Coupling module
IBS-PB CT 24 IO GT-T
2742751
PHOENIX_CONTACT
Coupling module
I/O coupling module (gateway) for one INTERBUS system and one PROFIBUS DP system, 24 V DC, protection type IP20
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2742751 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 125 (AX-2005) |
| GTIN | 4017918890360 |
| Weight per Piece (excluding packing) | 340.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Interfaces
| Interface | INTERBUS remote bus (incoming/outgoing) |
|---|---|
| Connection method | D-SUB 9 plug |
| Transmission speed | 500 kbps / 2 Mbps |
| Transmission physics | Copper |
| Transmission length | 400 m (depending on the transmission speed) |
| Interface | PROFIBUS DP remote bus |
| Connection method | D-SUB 9 plug |
| Transmission speed | 9.6 kbps ... 12 Mbps |
| Transmission physics | Copper |
| Transmission length | 1200 m (depending on the transmission speed) |
Power supply
| Typical current consumption | 150 mA |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V ... 30 V |
Electrical isolation
| Test section | Supply voltage/logics 500 V AC 50 Hz 1 min. |
|---|---|
| Supply voltage/functional earth ground 500 V AC 50 Hz 1 min. | |
| Logics/functional earth ground 500 V AC 50 Hz 1 min. | |
| INTERBUS system /PROFIBUS-DP system 500 V AC 50 Hz 1 min. |
General
| Weight | 340 g |
|---|---|
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240604eCl@ss 4.127250201eCl@ss 5.027250203eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242208eCl@ss 8.027242208eCl@ss 9.027242208
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
