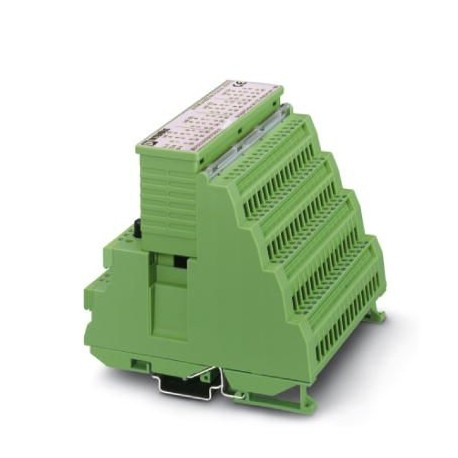

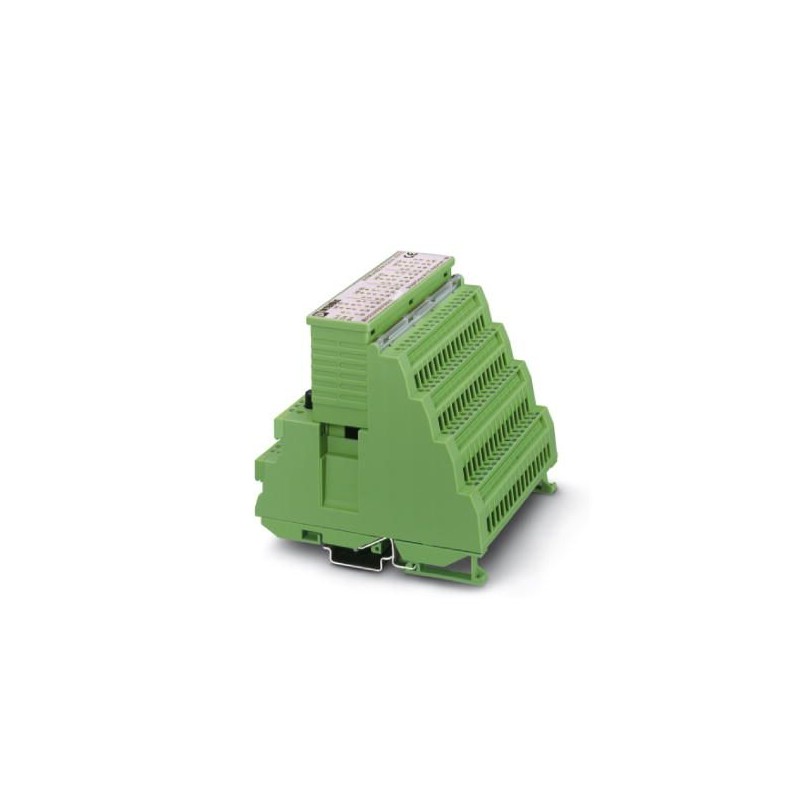

IB ST ZF 24 BDO 32/2
2750691
PHOENIX_CONTACT
1
I/O module
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2750691 |
---|---|
Packing unit | 1 pc |
GTIN | 4017918140106 |
Weight per Piece (excluding packing) | 691.300 g |
Custom tariff number | 85389091 |
Country of origin | DE (Germany) |
Ambient temperature (operation) | 0 °C ... 55 °C |
---|---|
Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 75 % (non-condensing) |
Permissible humidity (storage/transport) | 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
Air pressure (storage/transport) | 86 kPa ... 108 kPa (1500 m above sea level) |
Degree of protection | IP20 |
Output name | Digital outputs |
---|---|
Connection method | Spring-cage connection |
Connection technology | 2-wire |
Number of outputs | 32 |
Type of protection | Short-circuit protection |
Current limit for 8 channels | |
Maximum output current per channel | 500 mA |
Maximum output current per module / terminal block | 16 A |
Maximum output current per group | 16 A |
Nominal load, inductive | 12 VA |
Nominal load, lamp | 4 W |
Nominal load, ohmic | 12 W |
Supply voltage | 24 V DC |
---|---|
Supply voltage range | 20 V DC ... 30 V DC (including ripple) |
Ripple | 3.6 Vppwithin the allowable voltage range |
Current consumption | 100 mA |
Connection in acc. with standard | CUL |
---|---|
Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
No hazardous substances above threshold values |
