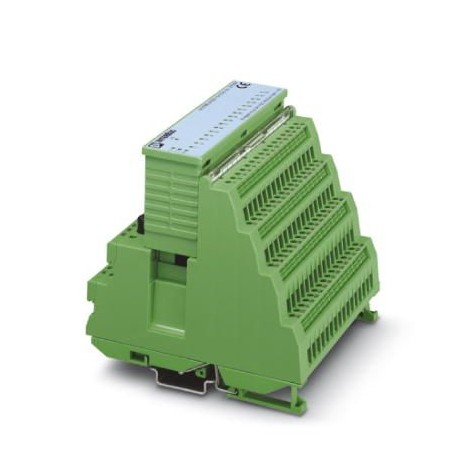

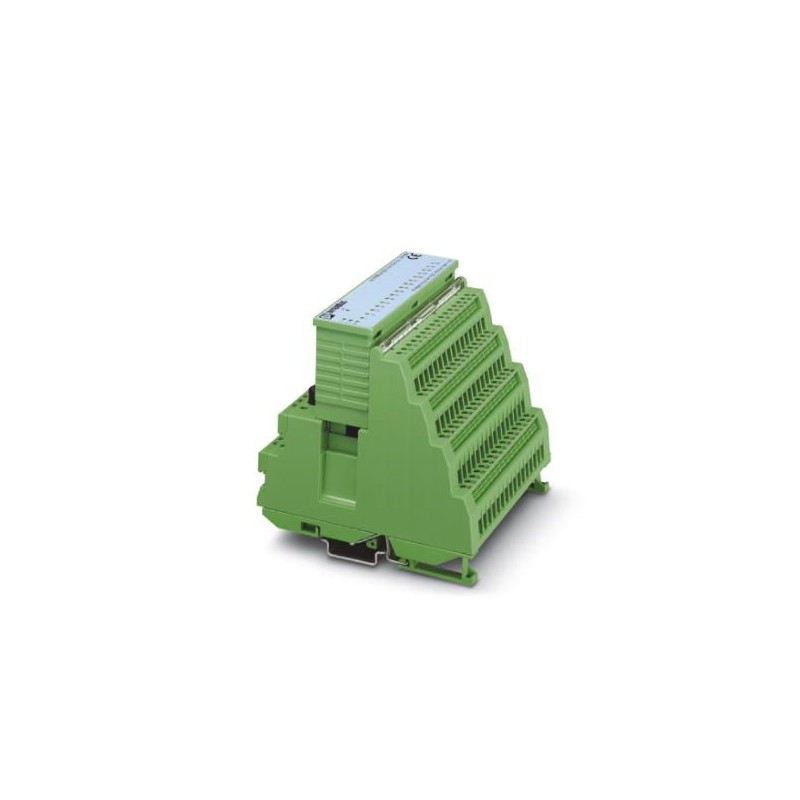

IB ST ZF 24 BDI 16/4 2750730 PHOENIX CONTACT I/O module
IB ST ZF 24 BDI 16/4
2750730
PHOENIX_CONTACT
I/O module
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2750730 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918132118 |
| Weight per Piece (excluding packing) | 662.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | 0 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Degree of protection | IP20 |
Digital inputs
| Input name | Digital inputs |
|---|---|
| Connection method | Spring-cage connection |
| Connection technology | 4-wire |
| Number of inputs | 16 |
| Typical response time | 50 µs |
| Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 15 V DC ... 30 V DC |
| Nominal input current at UIN | typ. 6 mA (per channel) |
Power supply for module electronics
| Supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 20 V DC ... 30 V DC (including ripple) |
| Ripple | 3.6 Vppwithin the allowable voltage range |
| Current consumption | typ. 100 mA |
Electrical isolation
| Test section | Bus logic / I/O 500 V AC 50 Hz 1 min. |
|---|---|
| Supply voltage logic / I/O 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250302eCl@ss 5.027250302eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
