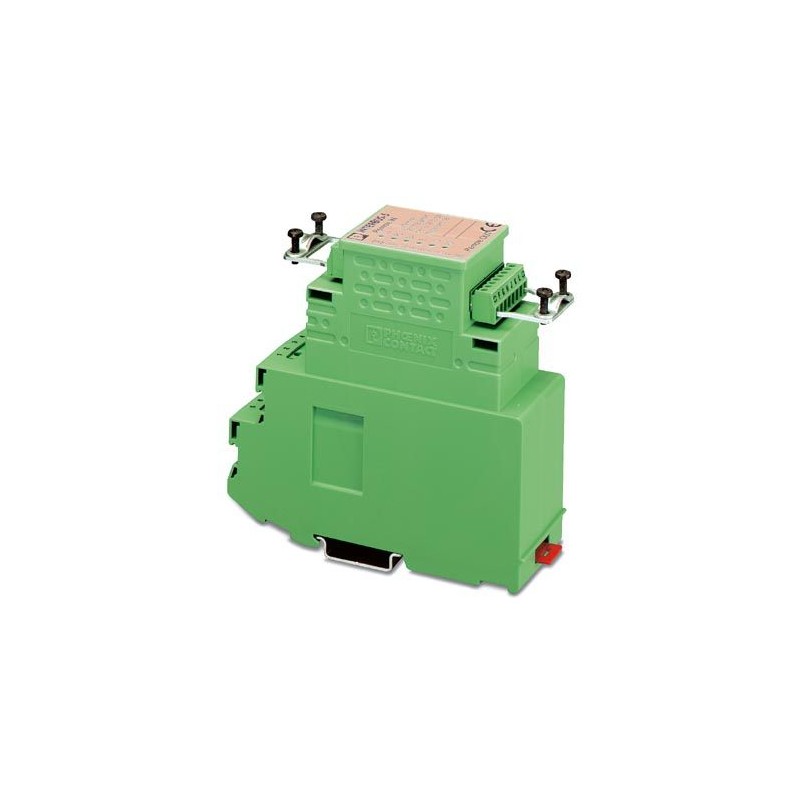

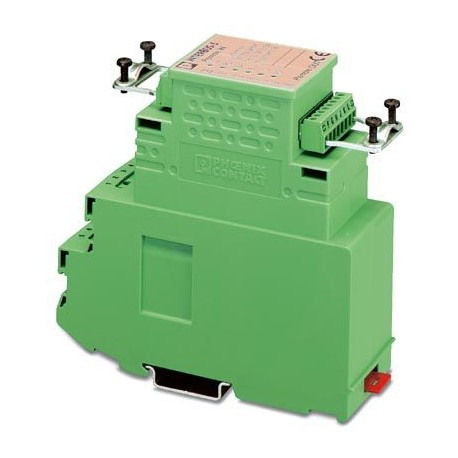

IB ST 24 V.24 2725480 PHOENIX CONTACT Special function module
IB ST 24 V.24
2725480
PHOENIX_CONTACT
Special function module
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2725480 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918154295 |
| Weight per Piece (excluding packing) | 220.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm |
Interfaces
| Designation | ST local bus |
|---|---|
| Connection method | ST local bus connector |
| Transmission speed | 110 ... 19200 bps (programmable) |
| Input buffer | 4 kByte |
| Output buffer | 4 kByte |
Power supply for module electronics
| Connection method | ST local bus connector |
|---|---|
| Designation | Communications power |
| Supply voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 130 mA (from the ST local bus) |
| Designation | US |
| Voltage | 24 V DC |
| Nominal supply voltage range | 20 V DC ... 30 V DC |
Serial input/output channel
| Parity | Even, odd or no parity |
|---|---|
| Hardware handshake | RTS/CTS and DTR/DSR at RS-232-C |
Electrical isolation
| Test section | Interfaces/Logic 500 V AC 50 Hz 1 min. |
|---|---|
| Interfaces/24 V supply 500 V AC 50 Hz 1 min. | |
| Interfaces/Bus 500 V AC 50 Hz 1 min. | |
| Interfaces/Ground conductor 500 V AC 50 Hz 1 min. | |
| 24 V supply/Bus 500 V AC 50 Hz 1 min. | |
| 24 V supply/Ground conductor 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250304eCl@ss 4.127250304eCl@ss 5.027250304eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242605eCl@ss 8.027242605eCl@ss 9.027242605
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
