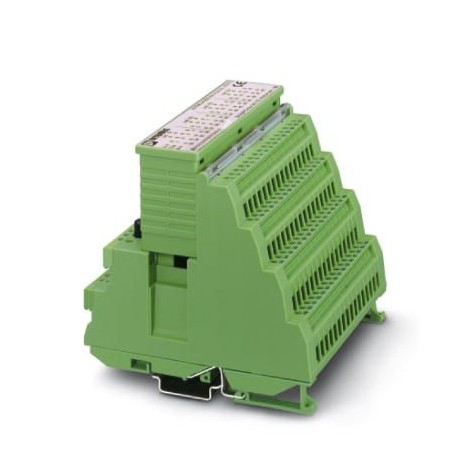

IB ST 24 DO32/2-WT 2752482 PHOENIX CONTACT I/O module
IB ST 24 DO32/2-WT
2752482
PHOENIX_CONTACT
I/O module
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2752482 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918272449 |
| Weight per Piece (excluding packing) | 741.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Power supply
| Communications power UL | 9 V DC (from the ST local bus) |
|---|---|
| Typical current consumption | 100 mA (from the ST local bus) |
| I/O voltage | 24 V DC |
| Residual ripple | ± 1.2 VPP |
| I/O voltage range | 20 V DC ... 30 V DC |
Electrical isolation
| Test section | Bus/Output groups 500 V AC 50 Hz 1 min. |
|---|---|
| Output groups/Ground conductor 500 V AC 50 Hz 1 min. | |
| Output group/Output group 500 V AC 50 Hz 1 min. |
Outputs
| Number of outputs | 32 |
|---|---|
| Number of output groups | 4 |
| Connection technology | 2-wire |
| Output voltage | US- 1 V |
| Maximum output current per channel | 500 mA |
| Maximum output current per group | 4 A |
| Minimum output current per channel | 1 mA |
| Maximum output current per module / terminal block | 16 A |
| Nominal load, ohmic | 12 W (max. 300 Hz/48 Ω) |
| Nominal load, lamp | 12 W |
| Nominal load, inductive | 12 VA (0.5 Hz at 1.2 H/48 Ω) |
| Protective circuit | Short-circuit protection of outputs Electronic per channel |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250302eCl@ss 5.027250302eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
