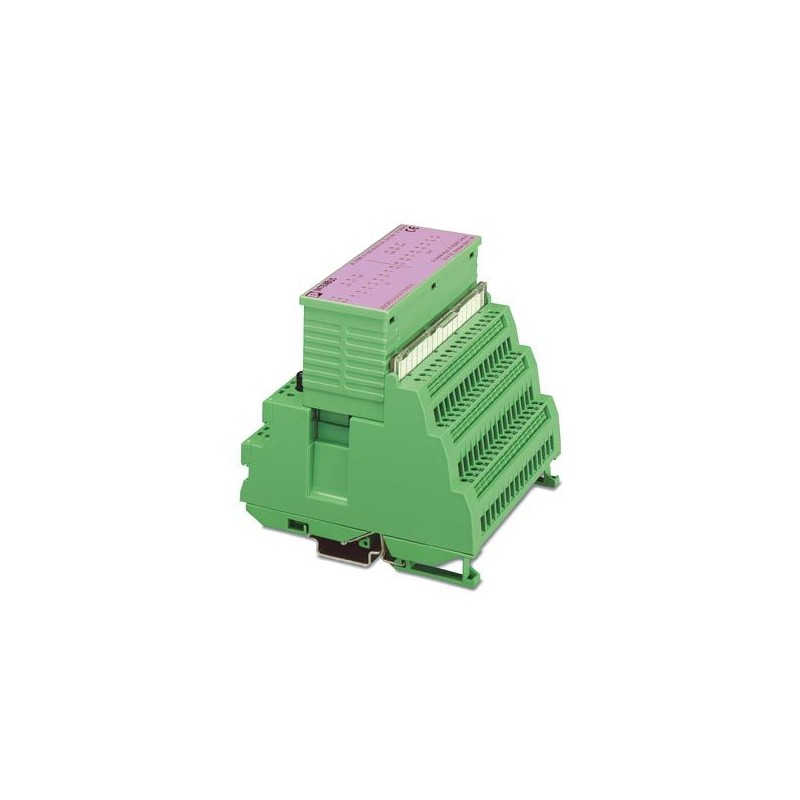

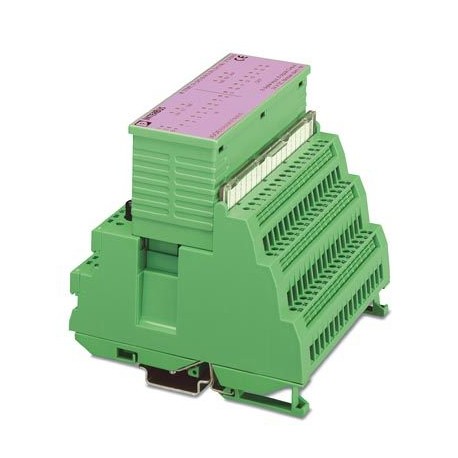

IB ST 24 DIO 8/8/3-2A-WT 2719166 PHOENIX CONTACT I/O module
IB ST 24 DIO 8/8/3-2A-WT
2719166
PHOENIX_CONTACT
I/O module
INTERBUS-ST digital input/output module, 8 inputs, 24 V DC, 8 outputs, 24 V DC, 2 A, IP20 degree of protection, consisting of: Part of terminals with spring connection and modular electronics, extended temperature range
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2719166 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918271176 |
| Weight per Piece (excluding packing) | 697.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Power supply
| Communications power UL | 9 V DC (from the ST local bus) |
|---|---|
| Typical current consumption | 200 mA (to US) |
| I/O voltage | 24 V DC |
| I/O voltage range | 20 V DC ... 30 V DC |
| Residual ripple | ± 1.2 V |
Inputs
| Number of inputs | 8 |
|---|---|
| Connection technology | 3-wire (Signal, Us, GND) |
| Typical input current per channel | 5 mA |
| Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC |
Outputs
| Number of outputs | 8 |
|---|---|
| Connection technology | 3-wire (Signal, GND, PE) |
| Output voltage | Us - 1.5 V |
| Maximum output current per module / terminal block | 16 A |
| Nominal load, ohmic | 48 W (max. 150 Hz) |
| Nominal load, lamp | 24 W |
| Nominal load, inductive | 48 VA (max. 5 Hz at 1.2 H with 12 Ω) |
| Type of protection | Short-circuit protection |
| Protective circuit/component | Fuse |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250302eCl@ss 4.127250302eCl@ss 5.027250302eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
