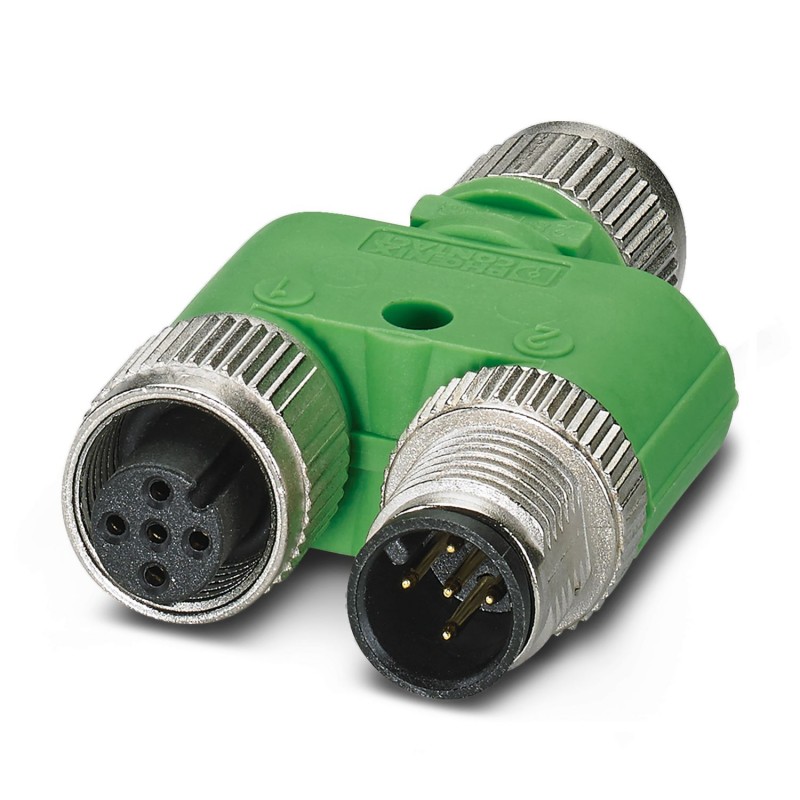

IB L2-M ADAP 1/1 M12 2819163 PHOENIX CONTACT Y distributor
IB L2-M ADAP 1/1 M12
2819163
PHOENIX_CONTACT
5
Y distributor
Y connector, for linking a Loop 2 S-Line module to loop 2 (M12)
Y plug, for connecting a Loop 2 S Line module with the Loop 2 (M12)
Sensors > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | with center distance of 18 mm, suitable for molded connectors and unshielded connectors that can be assembled with QUICKON IDC terminal block connection technology and a connection range of 0.14 mm² to 0.34 mm² |
| Product type | Y-distributor |
| Number of positions | 5 |
| No. of cable outlets | 2 |
| Shielded | no |
| Coding | A |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insulation resistance | ≥ 10 GΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Status display | no |
| Status display present | No |
| Dimensional drawing |  |
| Length | 50.1 mm |
| Center distance | 18 mm |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Connection 1 | |
| Type | Socket straight M12 |
| Coding type | A |
| Connection 2 | |
| Type | Socket straight M12 |
| Coding type | A |
| Connection 3 | |
| Type | Plug straight M12 |
| Coding type | A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Y-adapter |
| Screened (EF000881) | No |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 90 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 48 V |
| Rated current In (EF008250) | 4 A |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
