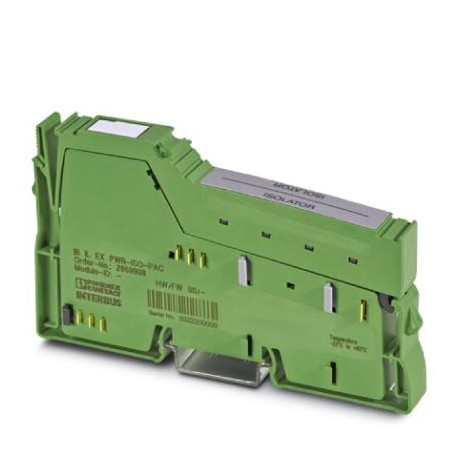

IB IL EX PWR-ISO-PAC 2869909 PHOENIX CONTACT Inline terminal
IB IL EX PWR-ISO-PAC
2869909
PHOENIX_CONTACT
Inline terminal
Inline module for use as a separator between the intrinsically safe Inline I/O expansion and the intrinsically safe Inline power supply.
PLC's > Accessories/spare parts for controls
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2869909 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 168 (C-6-2017) |
| GTIN | 4055626141060 |
| Weight per Piece (excluding packing) | 81.500 g |
| Custom tariff number | 85389099 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % |
| Permissible humidity (storage/transport) | 10 % ... 95 % |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
| IP20 |
Power supply for module electronics
| Supply voltage | 7 V DC (via internal bus) |
|---|---|
| Supply current | 25 mA (via internal bus) |
Standards and Regulations
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 GcX |
|---|---|
| Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027230207eCl@ss 5.127061803eCl@ss 6.027240600eCl@ss 7.027240692eCl@ss 8.027240692eCl@ss 9.027242692
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Other |
| Type of mechanical accessory/spare part (EF005994) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
