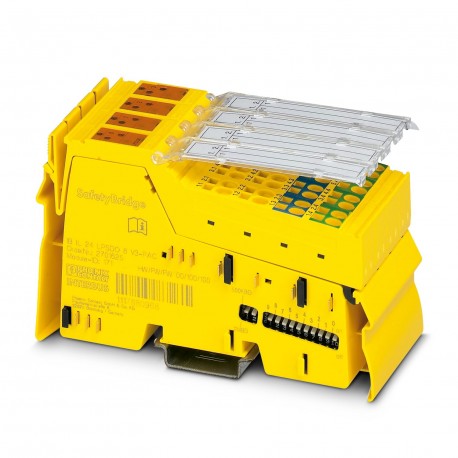

IB IL 24 LPSDO 8 V3-PAC 2701625 PHOENIX CONTACT Safety module
IB IL 24 LPSDO 8 V3-PAC
2701625
PHOENIX_CONTACT
Safety module
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2701625 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 296 (C-6-2017) |
| GTIN | 4046356770033 |
| Weight per Piece (excluding packing) | 355.200 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
Interfaces
| Designation | Inline local bus |
|---|---|
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (can be switched) |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Connection method | Spring-cage connection |
| Connection technology | 2, 3, 4-wire |
| Number of outputs | 4 (with two-channel assignment) |
| 8 | |
| Type of protection | Overload protection, short-circuit protection of outputs |
| Output voltage | 24 V DC (US- 1 V) |
| Nominal output voltage | 24 V DC |
| Output current | max. 6 A (Total current of all outputs, -25 °C ... 50 °C) |
| max. 4 A (Total current of all outputs, >50 °C ... 55 °C) | |
| Maximum output current per channel | 2 A |
| Maximum output current per group | 3 A |
| Nominal load, inductive | see safety data |
| Nominal load, lamp | see safety data |
| Nominal load, ohmic | see safety data |
Power supply for module electronics
| Supply voltage | 24 V DC (via voltage jumper) |
|---|---|
| Supply voltage range | 19.2 V DC ... 30 V DC |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 355.2 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Short-circuit / overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (see safety data) |
| Current consumption | max. 230 mA (see safety data) |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (see safety data) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 30 mA (all outputs set including actuator current) |
| max. 6.03 A | |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V (see safety data) |
SafetyBridge properties
| Connection to I/O modules | max. 16 (safe digital I/O modules) |
|---|---|
| Logic memory | 60 kByte |
Safety-related characteristic data
| Designation | IEC 61508 - High demand |
|---|---|
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | IEC 61508 - Low demand |
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | EN ISO 13849 |
| Performance level (PL) | max. e (two channel; dependent in parameterization and wiring) |
| Category | max. 4 (two channel; dependent in parameterization and wiring) |
| Designation | EN 62061 |
| Safety Integrity Level Claim Limit (SIL CL) | max. 3 (two channel; dependent in parameterization and wiring) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027240409eCl@ss 4.127240409eCl@ss 5.027242205eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
