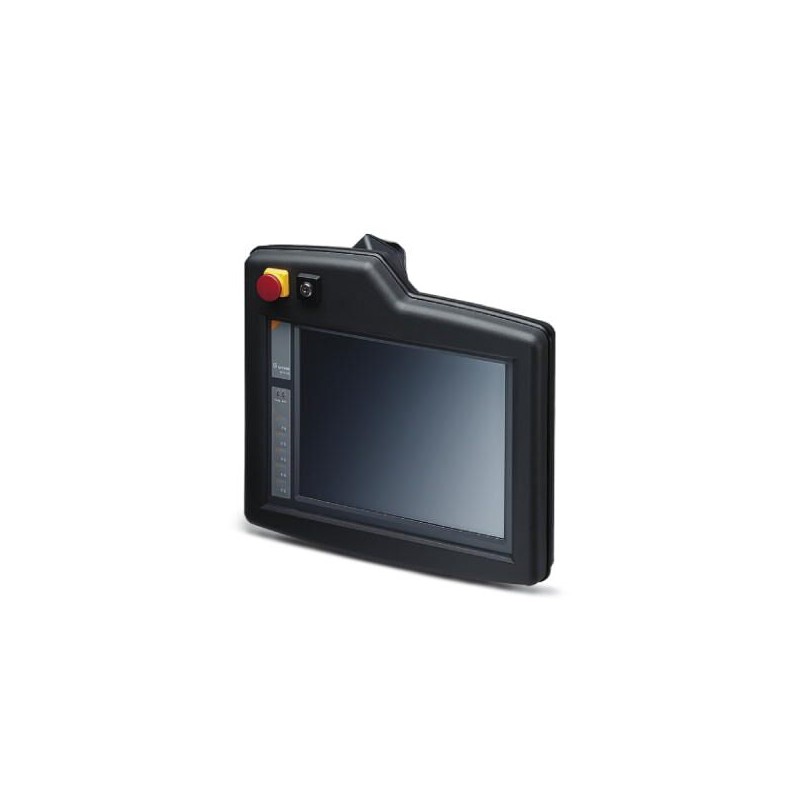

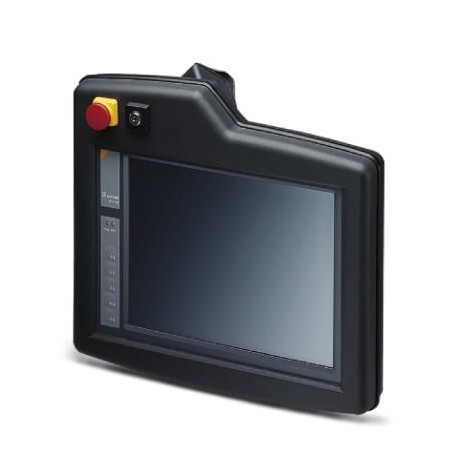

HTP 105XIT AUTO 01 2403201 PHOENIX CONTACT Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial..
HTP 105XIT AUTO 01
2403201
PHOENIX_CONTACT
Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial touch screen), 800 x 600 Pixel(s) (SVGA), 65536 colors, Xscale
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial touch screen), 800 x 600 Pixel(s) (SVGA), 65536 colors, Xscale®PXA320, 806 MHz, 1x USB Host 1.1, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 6.0 and user software: Portico. (bus system: without)
Key Commercial Data
| Orderkey | 2403201 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626382128 |
| Custom tariff number | 84713000 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 311 mm x 281 mm x 135 mm |
|---|
Display
| Display | 26.4 cm/10.4" TFT |
|---|---|
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Touch technology | Resistive industrial touch screen |
| Brightness | 340 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 65536 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 50 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | Xscale®PXA320, 806 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Portico |
| RAM | 128 MB SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 1x USB Host 1.1 |
| Bus system | without |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Operating buttons | 5x System keys (Software keyboard, change task Alt+Tab, right mouse button, brightness, user-specific function) |
|---|---|
| Optional operating keys | 3-stage enable switch (2-channel), integrated in the handle |
| Weight | 3200 g |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Device supply
| Supply voltage | |
|---|---|
| Typical current consumption | 0.8 A |
| Power supply unit | 24 V DC ±20 % |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27330200 |
|---|---|
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242303 |
| eCl@ss 8.0 | 27242303 |
| eCl@ss 9.0 | 27330202 |
ETIM
| ETIM 3.0 | EC001412 |
|---|---|
| ETIM 4.0 | EC001427 |
| ETIM 5.0 | EC001427 |
| ETIM 6.0 | EC001427 |
| ETIM 7.0 | EC001427 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
