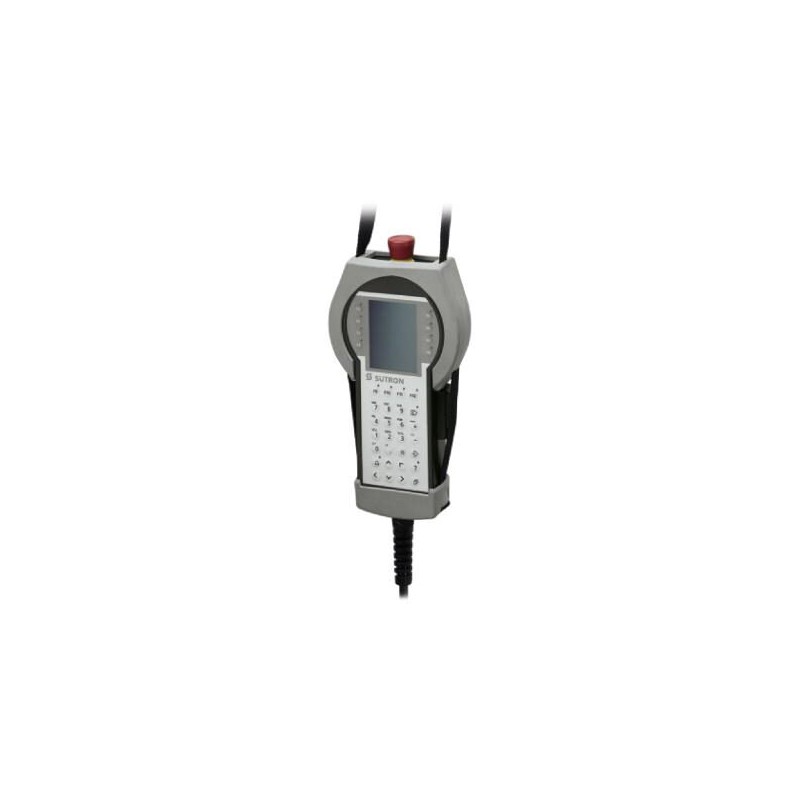

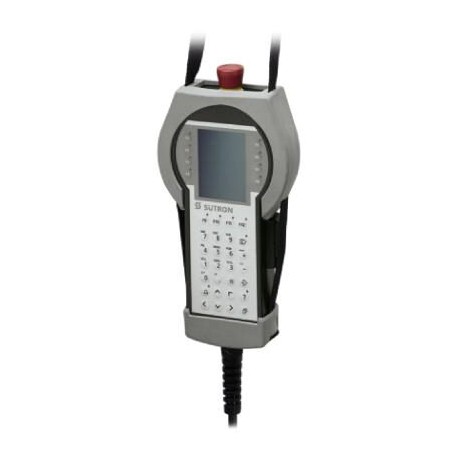

HT06AT/762050/311/00100 S00001 2400675 PHOENIX CONTACT Mobile panel with 8,9 cm / 3,5"-TFT-display (analog r..
HT06AT/762050/311/00100 S00001
2400675
PHOENIX_CONTACT
Mobile panel with 8,9 cm / 3,5"-TFT-display (analog resistive (polyester)), 65536 colors, Arm9™, 200 MHz, 1x USB Host 2.0, None, Windows CE 5.0 and user software: TSvisRT. (bus system: INTERBUS 512 kbps)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Display
| Display | 8,9 cm / 3,5"-TFT |
|---|---|
| Screen resolution | 240 x 320 Pixel(s) |
| Touch technology | analog resistive (polyester) |
| Brightness | 320 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 30000 h |
| Colors | 65536 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 80 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 64 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 32 MB |
| Network | None |
| Interfaces | 1x USB Host 2.0 |
| Bus system | INTERBUS 512 kbps |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330200 |
|---|---|
| eCl@ss 4.1 | 27330200 |
| eCl@ss 5.0 | 27330200 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242303 |
| eCl@ss 8.0 | 27242303 |
| eCl@ss 9.0 | 27330202 |
