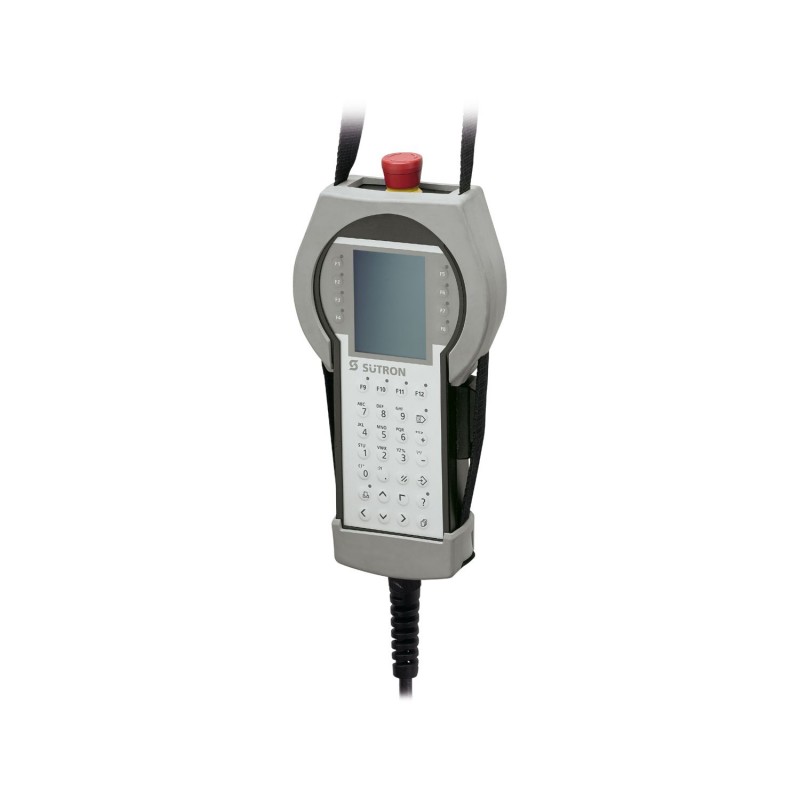

HT06AT/702050/311/03050 S00001 2400656 PHOENIX CONTACT Mobile panel with 8,9 cm / 3,5"-TFT-display (analog r..
HT06AT/702050/311/03050 S00001
2400656
PHOENIX_CONTACT
Mobile panel with 8,9 cm / 3,5"-TFT-display (analog resistive (polyester)), 65536 colors, Arm9™, 200 MHz, 1x USB Host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Operator panel |
| Computer data | |
| Processor | Arm9™, 200 MHz |
| Operating system | Windows® CE 5.0 |
| RAM | 64 MB SDRAM |
| 512 KB SRAM | |
| Data storage system | NOR-Flash, 32 MB |
| Display | |
| Display type | 8.9 cm / 3.5"-TFT |
| Screen resolution | 240 x 320 Pixel(s) |
| Touch technology | analog resistive (polyester) |
| Display lighting type | LED |
| Brightness | 320 cd/m² typical (adjustable) |
| MTBF | 30000 h |
| Color spectrum | 65536 colors |
| Reading angle left | 70.00 ° |
| Reading angle right | 70.00 ° |
| Reading angle top | 80.00 ° |
| Reading angle bottom | 60.00 ° |
| Interfaces | 1x USB Host 2.0 |
| Optional interfaces | none |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Bus system | without |
| User software | TSvisRT |
| Service life of battery | 5 years (typical) |
| Supply | |
| Typical current consumption | 0.25 A |
| Real-time clock | |
| Realtime clock | Yes |
| Supply | |
| Power supply unit | 24 V DC ±20 % |
| Mounting type | none |
| Material front plate | Plastic |
| Housing material | Plastic |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Altitude | 3000 m |
| Permissible humidity (operation) | 20 % ... 85 % |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| External dimensions | |
| Width / Height / Depth | 145 mm / 265 mm / 67 mm |
