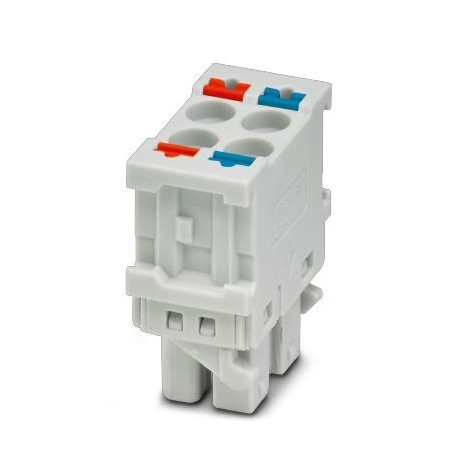

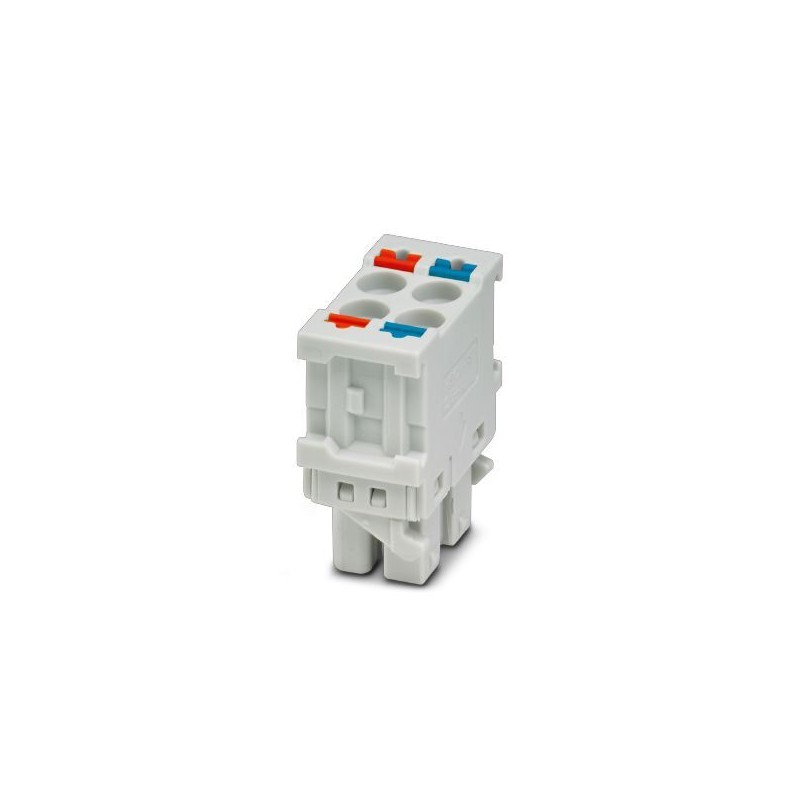

HSCP-SP 2,5-1U4-62/62-7035 1081107 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (III/2..
HSCP-SP 2,5-1U4-62/62-7035
1081107
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
PCB connector, nominal current: 8 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 4, pitch: 5 mm, connection method: Push-in spring connection, color: light gray
Connector for printed circuit board, nominal section: 2.5 mm², color: light gray, nominal current: 8 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of potentials: 4, number of rows: 2, number of poles: 4, number of connections: 4, article family: HSCP-SP 2.5-.., pitch: 5 mm, Connection Type: Push-In Spring Connection, Driver/Printed Circuit Board Connection Direction: 0°, Clamping Hook: - Clamping Hook, Plug-in System: HSC 2.5, Locking: Without, Fixing Type: Without, Packaging Type: Boxed, NC Spring Contact Color: Blue, Red/Blue, Red
Connectors > Cable connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
| Product type | PCB plug |
|---|---|
| Approval | IECEE CB Scheme |
| VDE approval of drawings | |
| EAC | |
| cULus Recognized | |
| Rated voltage (IEC) | 300 |
| Rated current (IEC) | 8 |
| Number of positions | 4 |
| Pitch | 5 mm |
| Connection cross section | 2.5 |
| Connection method | Push-in spring connection |
| Conductor connection direction | 0 ° |
| Contact type | Female connector |
| Color | light gray |
| Contact surface material | Tin |
Classifications
eCl@ss
| eCl@ss 4.0 | 27260700 |
|---|---|
| eCl@ss 4.1 | 27260700 |
| eCl@ss 5.0 | 27260700 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Spring clamp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
