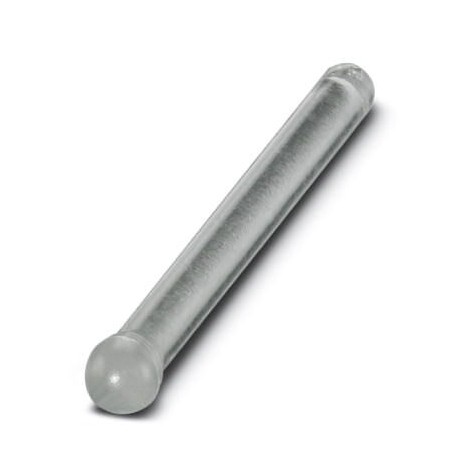

HS LC-V-T-D4X5,2S-45 1082300 PHOENIX CONTACT Vertical 4 mm light guide, transparent, with spherical 5.2 mm r..
HS LC-V-T-D4X5,2S-45
1082300
PHOENIX_CONTACT

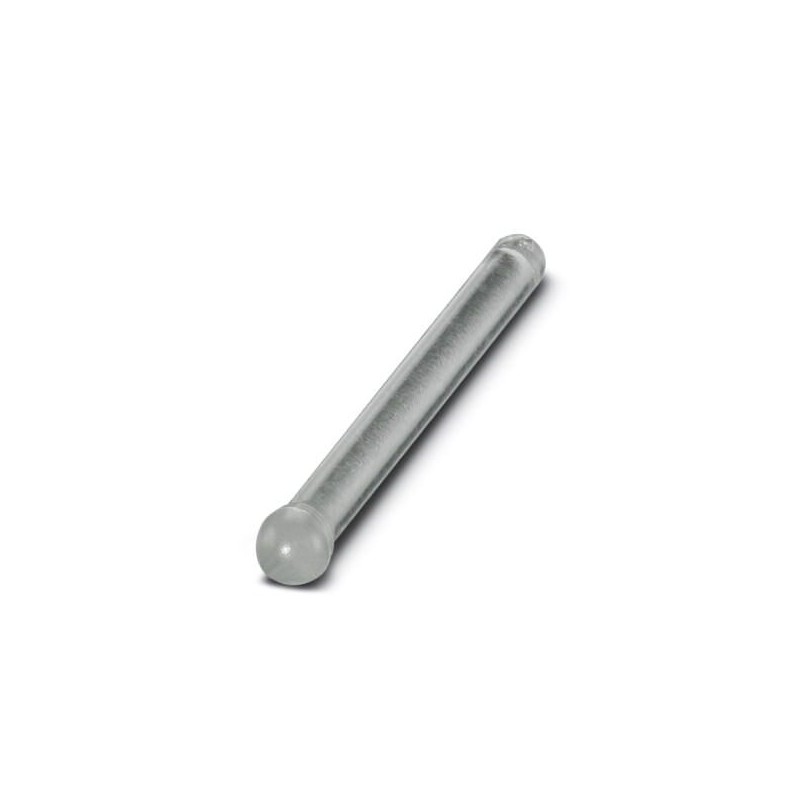

Vertical 4 mm light guide, transparent, with spherical 5.2 mm raised head, assembly for wall thicknesses from 1 mm, made of polycarbonate (UL 94-V0), installation length 45 mm, watertight, IP68 (EN 50529)
4 mm vertical light conductor, transparent, with 5.2 mm spherical lens head, mounting for wall reinforcement from 1 mm, polycarbonate (UL 94-V0), 45 mm mounting length, waterproof, IP68 (EN 50529)
Connectors > Accessories/spare parts for industrial connectors
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1082300 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626812540 |
| Weight per Piece (excluding packing) | 20.000 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Product properties
| Brief article description | Fiber optic |
|---|---|
| Type | HS LC-V-T-D4X5,2S-45 |
| Order No. | 1082300 |
| Type | passive, rigid |
| Alignment | Vertical |
| Number of displays | 1 (1 row x 1 column) |
| Head form | Round, spherical emission surface |
| Max. IP code to attain | IP68 |
General information
| Type of note | Assembly instruction: |
|---|---|
| Note | The light guide is designed to be pressed into an H7-tolerated receptacle. Dry-install the LED display by pressing it in vertically. As an alternative, you can glue in the LED display, e.g., using LOCTITE 460. |
| Refer to the data sheet for the range in the download area. |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180500 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
UNSPSC
| UNSPSC 13.2 | 31261501 |
|---|---|
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
