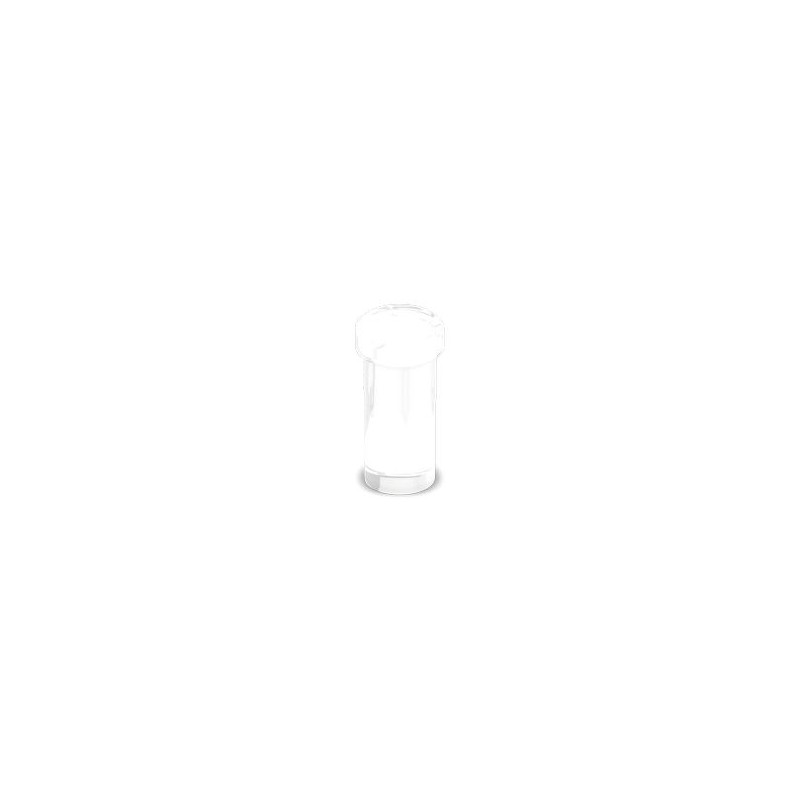

HS LC-D5PL-8,5 1474364 PHOENIX CONTACT Single, passive, rigid light conductor, Cylindrical head, Radiant sur..
HS LC-D5PL-8,5
1474364
PHOENIX_CONTACT
1000
Single, passive, rigid light conductor, Cylindrical head, Radiant surface: flat, Number of indicators: 1, (1 row, 1 column), length: 8.5 mm, ESD protection: <.4; kV, can be used for ME, ME MAX, ME-IO, ME PLC and EH device lines (case processing required)
Simple, passive, rigid light conductor, can be used for ME, ME MAX, ME-IO, ME PLC and EH device lines (case processing required)
Connectors > Accessories/spare parts for industrial connectors
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Look at the series datasheet in the download area. |
| General | Distance between LED and light conductor: 0.2 mm. |
| Product Type | Fiber Optic |
| Number of poles | 1 |
| Orientation | vertical |
| Execution | passive, rigid |
| Yarn Type | Simple Light Driver |
| Head Shape | Cylindrical head |
| Number of indicators | 1 (1 row x 1 column) |
| ESD Protection | < 4 kV |
| AWG Conductor Section | (Converted according to IEC) |
| Longitude | 8.5 mm |
| Diameter | 5 mm |
| Drill Diameter | 4.2 mm |
| Dimensions | 3 mm (Snap Fit Length) |
| Color Lichtleiter | transparent |
| Color (Light Conductors) | transparent |
| Insulating material | Polycarbonat |
| Environmental conditions | |
| Maximum achievable IP code | IP20 |
| Ambient Temperature (Service) | -40 °C ... 85 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
