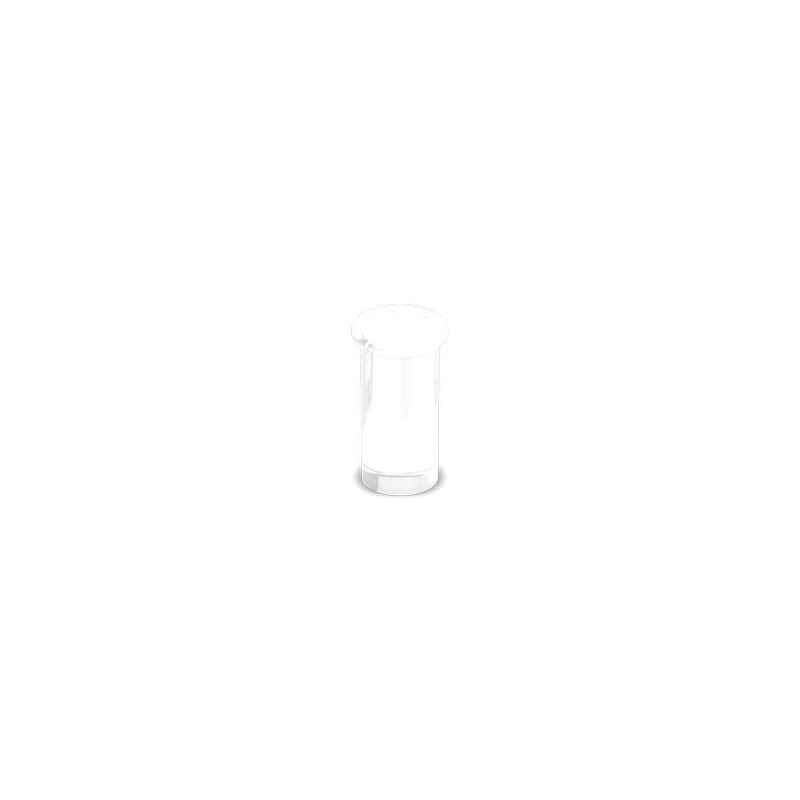

HS LC-D5CS-8,5 1474368 PHOENIX CONTACT Single, passive, rigid light conductor, Countersunk head, radiant sur..
HS LC-D5CS-8,5
1474368
PHOENIX_CONTACT
1000
Single, passive, rigid light conductor, Countersunk head, radiant surface: flat, number of indicators: 1, (1 row, 1 column), length: 8.5 mm, ESD protection: <4 kV, can be used for ME, ME MAX, ME-IO, ME PLC and EH device lines (case processing required)
Simple, passive, rigid light conductor, can be used for ME, ME MAX, ME-IO, ME PLC and EH device lines (case processing required)
Single, passive, rigid light conductor, can be used for ME, ME MAX, ME-IO, ME PLC and EH enclosures (enclosure modification required)
Connectors > Accessories/spare parts for industrial connectors
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General notes | Please refer to the data sheet of the product series in the download area. |
| General notes | Distance between LED and optical fiber 0.2 mm. |
| Product Type | FO conductor |
| No. of poles | 1 |
| Orientation | vertical |
| Execution | Passive, rigid |
| Conductor type | Single Light Conductor |
| Head shape | Hex socket head |
| Number of views | 1 (1 set x 1 column) |
| ESD protection | < 4 kV |
| Conductor cross-section AWG | (converted according to IEC) |
| length | 8.5 mm |
| Diameter | 5 mm |
| Bore diameter | 4.2 mm |
| dimensions | 3 mm (Pressing length) |
| Color | transparent |
| Color (Fiber optic) | transparent |
| Insulation material | Polycarbonate |
| Environmental conditions | |
| Max. IP code to be reached | Ip20 |
| Ambient temperature (operating) | -40 °C ... 85 °C |
