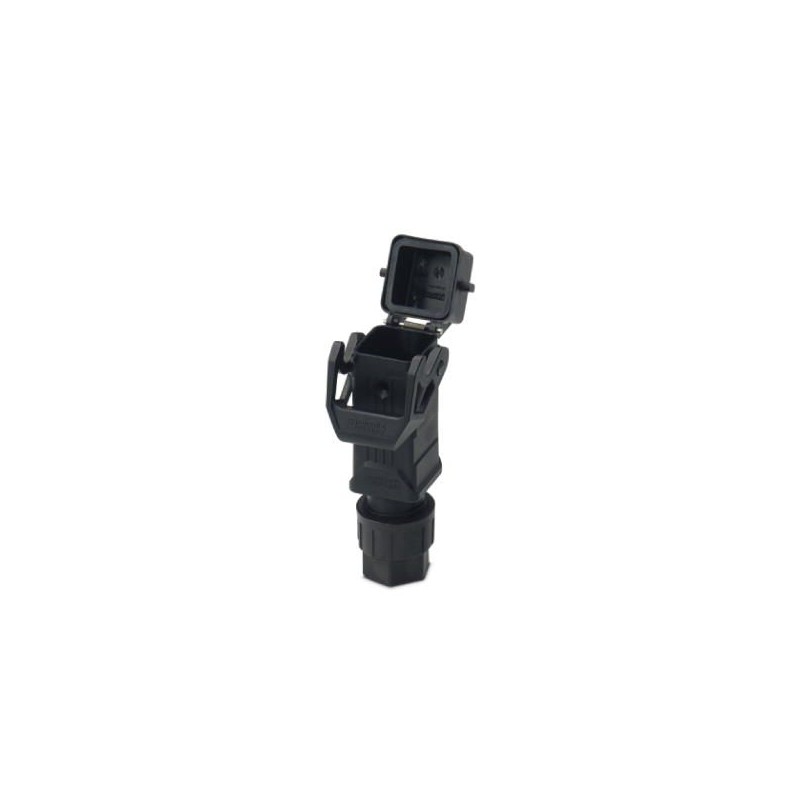

HC-STA-D07-CHWSCF-1TGM20-PL-BK 1419261 PHOENIX CONTACT Housing
HC-STA-D07-CHWSCF-1TGM20-PL-BK
1419261
PHOENIX_CONTACT
Housing
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1419261 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 510 (C-2-2017) |
| GTIN | 4055626160122 |
| Weight per Piece (excluding packing) | 36.200 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection (IP) | IP66 (when plugged in or with locked protective cover) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
|---|---|
| Size | D7 |
| Housing type | Coupling housings |
| Color | black |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Screw connection | with |
| Type of the screw connection | 1x M20 |
| Protective cover | yes |
| Housing material | PA |
| Material lock | PA |
| Material, protective cover | PA |
| Flammability rating according to UL 94 | V0 (Polyamide housing) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
