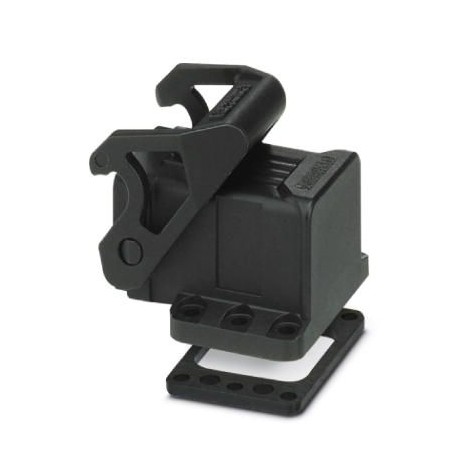

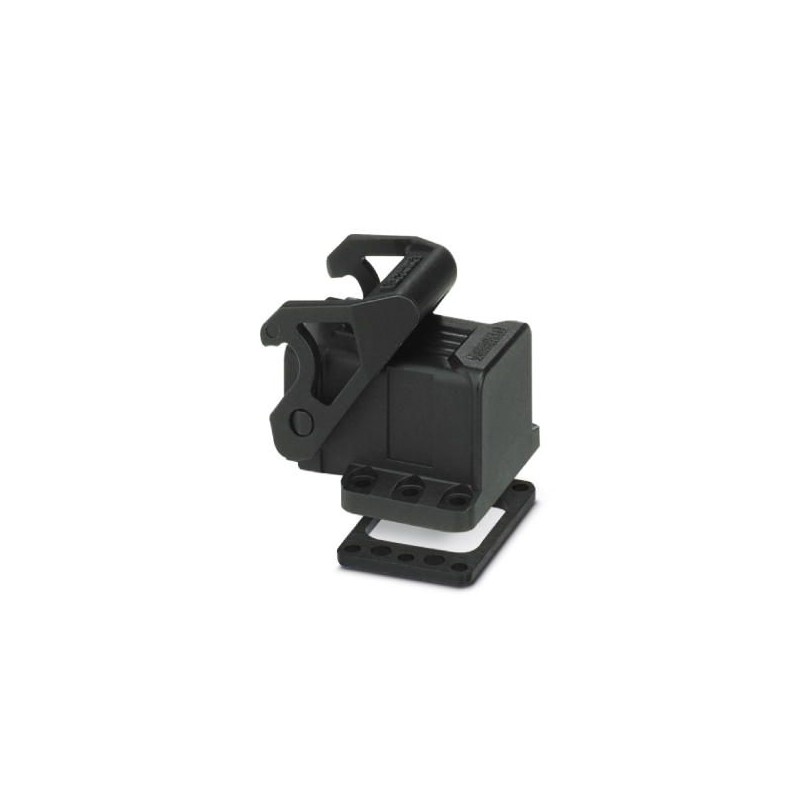

HC-STA-D07-BAWS-PL-BK 1419266 PHOENIX CONTACT Housing
HC-STA-D07-BAWS-PL-BK
1419266
PHOENIX_CONTACT
Housing
Recessed housing D7, with longitudinal flange, material: PA, height: 27.9 mm, cable gland: without, Standard, angled
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1419266 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 510 (C-2-2017) |
| GTIN | 4055626160177 |
| Weight per Piece (excluding packing) | 18.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 27.9 mm |
|---|---|
| Width | 38 mm |
| Length | 24.2 mm |
| Length of the assembly cutout | 21 mm |
| Width of the assembly cutout | 21 mm |
General
| Note | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
|---|---|
| Size | D7 |
| Housing type | Panel mounting base |
| Color | black |
| Locking type | with single locking latch |
| Screw connection | none |
| Housing material | PA |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 (Polyamide housing) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 38 mm |
| Height (EF000040) | 27.9 mm |
| Depth (EF000049) | 24.2 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK06 |
