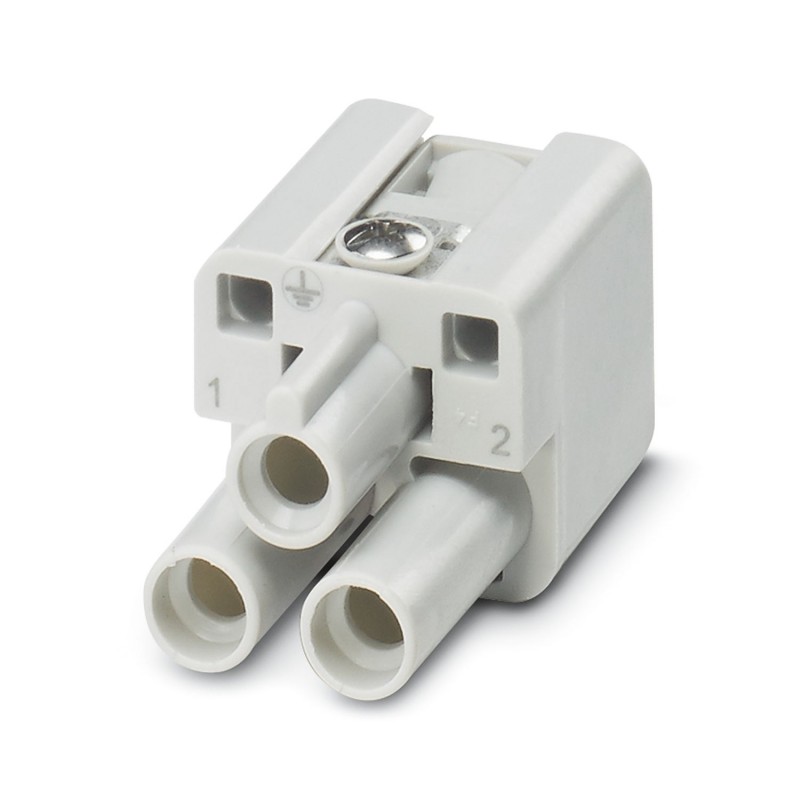

HC-Q02-I-CT-F 1419895 PHOENIX CONTACT Contact insert
HC-Q02-I-CT-F
1419895
PHOENIX_CONTACT
Contact insert
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1419895 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 507 (C-2-2017) |
| GTIN | 4055626256146 |
| Weight per Piece (excluding packing) | 9.400 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Note | For HC-D7 housing, crimp contacts CK 4,0. Crimp contacts not included in scope of supply. |
|---|---|
| Connection method | Crimp connection |
| Number of connections per position | 1 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 2+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D7 |
| Contact numbering | 1 - 2 |
| Conductor cross section | 1.5 mm² ... 6 mm² |
| Connection cross section AWG | 16 ... 10 |
| Stripping length of the individual wire | 9 mm (1.5 ... 6.0 mm²) |
| 11 mm (for 10 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Standards and Regulations
| Constructional and testing regulations | DIN VDE 0627/86 |
|---|---|
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
