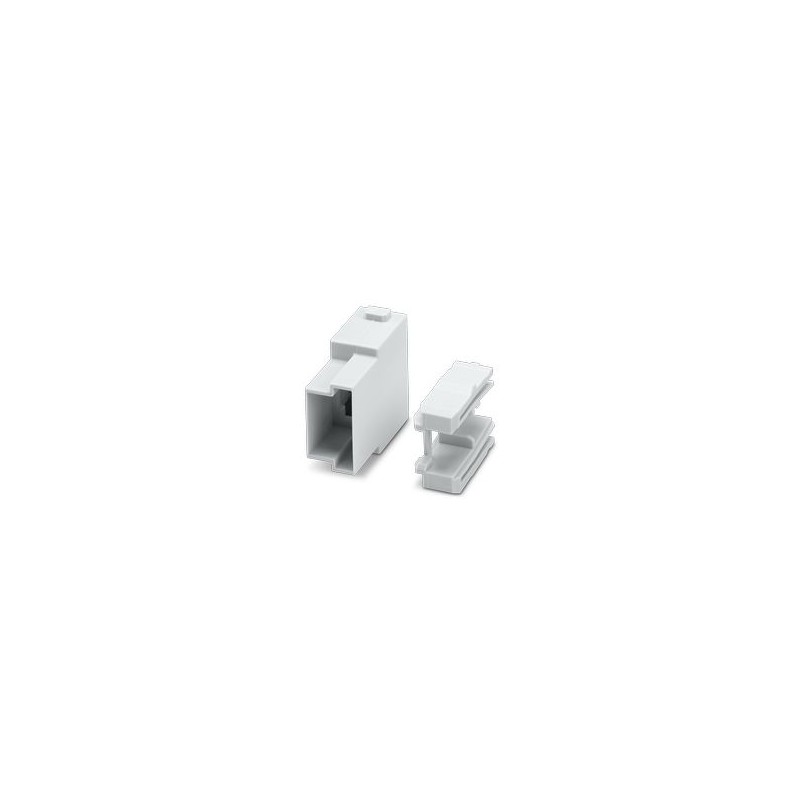

HC-M-RJ45-AD-PC2-M 1435214 PHOENIX CONTACT Contact insertion module, adapter for patch cable The correspondi..
HC-M-RJ45-AD-PC2-M
1435214
PHOENIX_CONTACT
Contact insertion module, adapter for patch cable; The corresponding connection cables can be found in the list of accessories
Contact Inserts Module
Contact insert module, adapter for patch cables, the matching patch cables can be found in the accessories list
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Sensor type | Ethernet |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Contact numbering | 1 - 8 |
| Application | Data |
| Number of module slots | 1 |
| Type | RJ45 |
| Series | HC-M-RJ45 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Width | 34.2 mm |
| Height | 50.7 mm |
| Length | 14.6 mm |
| Mechanical characteristics | |
| Minimum housing height | 72 mm |
| Rated voltage (III/3) | 48 V |
| Rated surge voltage | 0.8 kV |
| Rated current | 1 A |
| Transmission characteristics (category) | CAT6A(IEC 60512-27-100:2008, TIA-568-C.2:2009) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Testing | |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
