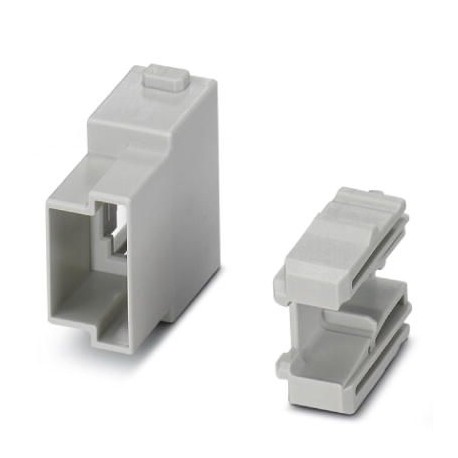

HC-M-RJ45-AD-PC-M 1419885 PHOENIX CONTACT Contact insert module
HC-M-RJ45-AD-PC-M
1419885
PHOENIX_CONTACT
Contact insert module
Contact Inserts Module
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Often bought together
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1419885 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 579 (C-2-2017) |
| GTIN | 4055626253237 |
| Weight per Piece (excluding packing) | 12.600 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Electrical characteristics
| Rated voltage (III/3) | 50 V |
|---|---|
| Rated current | 1 A |
| Rated surge voltage | 0.8 kV |
| Connection profile | RJ45 |
| Transmission characteristics (category) | CAT6 |
General
| Note | Use the patch cable from the accessories list. |
|---|---|
| Type | RJ45 |
| Series | HC-M-RJ45 |
| Color | light gray |
| Number of module slots | 1 |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 8 |
| Material connector insert (EF007545) | Other |
| Rated current In (EF008250) | 1 A |
| Ambient temperature (EF002386) | 60 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| With wire protection (EF000550) | No |
| Material of contact insert (EF008521) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34.2 mm |
| Height (EF000040) | 50.7 mm |
| Depth (EF000049) | 14.6 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
